Smc 3G-OTH-138648 — Technical Specifications

Name: Smc 3G-OTH-138648 SMC Mounting Pivot Bracket: Clevis/Pivot Bracket, Fits 63 mm Bore Dia, M10 x 20 Thread Size, CQ-C063. Key specifications — attr1062031: CQ-C063; attr1062033: SMC; attr1062037: CQ2; attr1062057: M10 x 20.
Brand: Smc

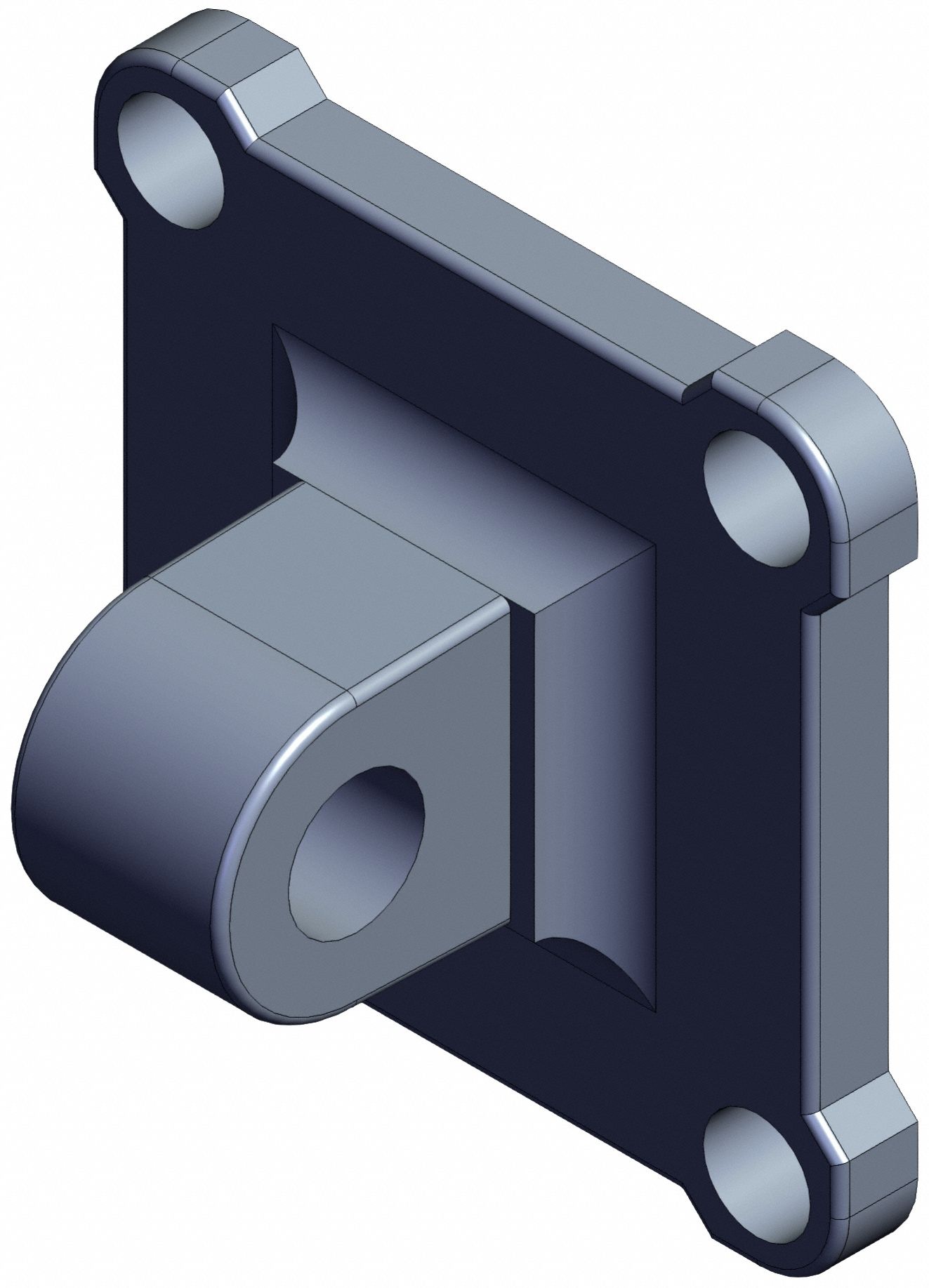

The SMC Mounting Pivot Bracket, model CQ-C063, is a clevis/pivot bracket designed for use with SMC CQ2 series cylinders. It fits a 63 mm bore diameter and features an M10 x 20 thread size. This clevis mounting hardware provides a pivot point for cylinder attachment in industrial equipment.

View Product & Quote

Technical Specifications

Parameter	Value
Attr1062031	CQ-C063
Attr1062033	SMC
Attr1062037	CQ2
Attr1062057	M10 x 20
Manufacturer Part Number	CQ-C063
