EMC

EMC (Electromagnetic Compatibility) output filters are passive electronic components designed to suppress electromagnetic interference (EMI) generated by variable frequency drives (VFDs) and other power conversion equipment. These filters are essential for ensuring compliance with international EMC standards such as IEC 61800-3 and for protecting sensitive equipment in industrial environments. The product line available through 3G Electric includes multiple series, notably the VW3A3140x and VW3A4712 models, which are engineered for use with AC drives operating at input voltages of 200-240V AC. Key specifications across the range include output current ratings from 9 A to 83 A, power loss values from 1 W to 27.4 W, and physical dimensions varying from 7.68 inches to 15.55 inches in height. These filters are typically constructed with ferrite cores and wound inductors, housed in metal enclosures that provide shielding and heat dissipation. The IP rating is generally IP20 for indoor installation, suitable for control cabinets. 3G Electric supplies these filters as part of a broader portfolio of industrial automation and power quality components, supporting plant engineers and maintenance managers in retrofitting or new installations. The filters are selected based on drive output current and voltage, with derating factors considered for ambient temperature and switching frequency. 3G Electric's logistics network ensures availability of these SKUs for global shipment, with technical datasheets provided for each model to facilitate integration into existing systems.

Genuine
OEM Parts
Expert
Tech Support
1 Day
Quote Response
Worldwide
Origin
Worldwide Shipping
Air & sea freight
Datasheets on Request
Technical specs & drawings
1-Day Quote Response
Singapore-based team
Show
Page 1 of 1

About EMC

EMC (Electromagnetic Compatibility) output filters are passive electronic components designed to suppress electromagnetic interference (EMI) generated by variable frequency drives (VFDs) and other power conversion equipment. These filters are essential for ensuring compliance with international EMC standards such as IEC 61800-3 and for protecting sensitive equipment in industrial environments. The product line available through 3G Electric includes multiple series, notably the VW3A3140x and VW3A4712 models, which are engineered for use with AC drives operating at input voltages of 200-240V AC. Key specifications across the range include output current ratings from 9 A to 83 A, power loss values from 1 W to 27.4 W, and physical dimensions varying from 7.68 inches to 15.55 inches in height. These filters are typically constructed with ferrite cores and wound inductors, housed in metal enclosures that provide shielding and heat dissipation. The IP rating is generally IP20 for indoor installation, suitable for control cabinets. 3G Electric supplies these filters as part of a broader portfolio of industrial automation and power quality components, supporting plant engineers and maintenance managers in retrofitting or new installations. The filters are selected based on drive output current and voltage, with derating factors considered for ambient temperature and switching frequency. 3G Electric's logistics network ensures availability of these SKUs for global shipment, with technical datasheets provided for each model to facilitate integration into existing systems.

Common Applications

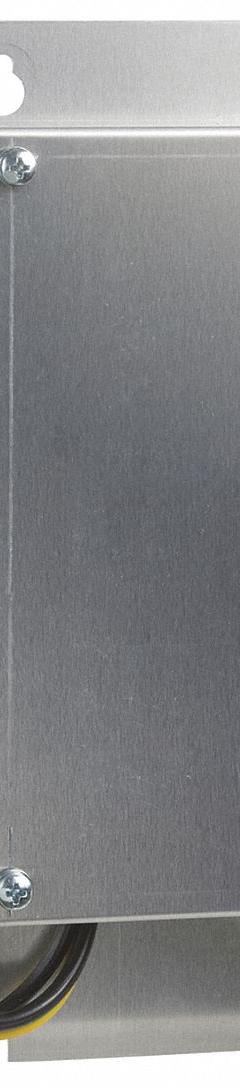

  • Industrial automation — VW3A31405 filter used with 22 A VFDs to suppress EMI in conveyor systems
  • HVAC systems — VW3A31403 filter applied to 16 A drives for fan and pump motor control
  • Water treatment — VW3A31409 filter installed on 49 A drives for large centrifugal pumps
  • Machine tools — VW3A4712 filter used with 70 A spindle drives to reduce radiated noise
  • Material handling — 48R285 filter employed with 25 A drives in automated storage and retrieval systems

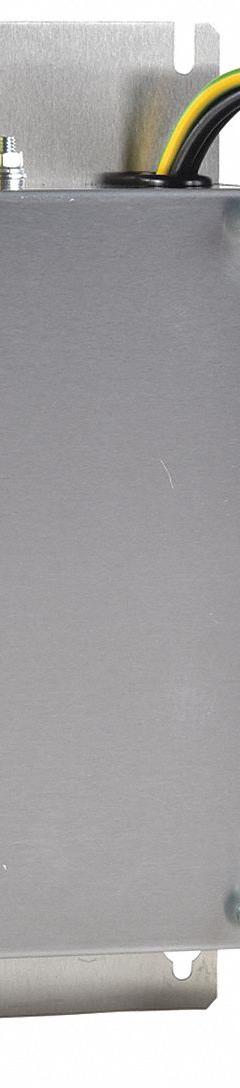

  • Process control — VW3A31408 filter integrated with 83 A drives for extruder or mixer applications

Frequently asked questions

Common questions about EMC from 3G Electric.

What is the primary function of an EMC output filter like the VW3A31405?

The primary function of an EMC output filter, such as the VW3A31405, is to reduce electromagnetic interference (EMI) generated by the output of a variable frequency drive (VFD). This filter attenuates high-frequency noise that can radiate from motor cables, preventing interference with nearby electronic equipment and ensuring compliance with EMC standards like IEC 61800-3. It is typically installed between the drive output and the motor, and its effectiveness depends on proper grounding and cable shielding.

How do I select the correct EMC filter for my drive system?

Selection of an EMC filter, such as the VW3A31403 or VW3A31409, is based on the drive's output current rating and input voltage. For example, the VW3A31403 is rated for 16 A at 200-240V AC, while the VW3A31409 handles 49 A. You must also consider the filter's power loss (watts) to ensure adequate heat dissipation in the cabinet. Additionally, verify the filter's physical dimensions fit within your enclosure. Consult the drive manufacturer's recommendations for filter compatibility.

Can EMC filters be used with motors that have long cable runs?

Yes, EMC filters like the VW3A4712 (70 A) are designed to mitigate EMI in systems with long motor cables, which can act as antennas for high-frequency noise. However, the filter's effectiveness decreases with cable length beyond the manufacturer's specified maximum (typically 50-100 meters). For longer runs, additional measures such as shielded cables and output reactors may be required. Always refer to the filter's datasheet for cable length limits.

What is the significance of the power loss rating on an EMC filter?

The power loss rating, expressed in watts (e.g., 1 W for the 48R285 or 27.4 W for the VW3A31409), indicates the amount of heat the filter dissipates under rated conditions. This heat must be managed within the control cabinet to prevent overheating. Higher power loss filters may require forced air cooling or derating at elevated ambient temperatures. The loss is a function of the filter's inductance and core material, and it affects overall system efficiency.

Are EMC filters like the VW3A31401 suitable for single-phase drives?

The VW3A31401 is rated for 200-240V AC input and 9 A output, which is typical for small three-phase drives. While it can be used with single-phase drives if the voltage and current ratings match, EMC filters are generally designed for three-phase systems. For single-phase applications, verify that the filter's internal configuration (e.g., line-to-line or line-to-ground connections) is compatible. Consult the filter's wiring diagram for proper installation.

Does 3G Electric supply EMC products?

Yes — 3G Electric (S) Pte. Ltd. supplies EMC products. We stock the EMC catalog and supply genuine factory-original products with full manufacturer warranty and technical support.
