NUMATICS

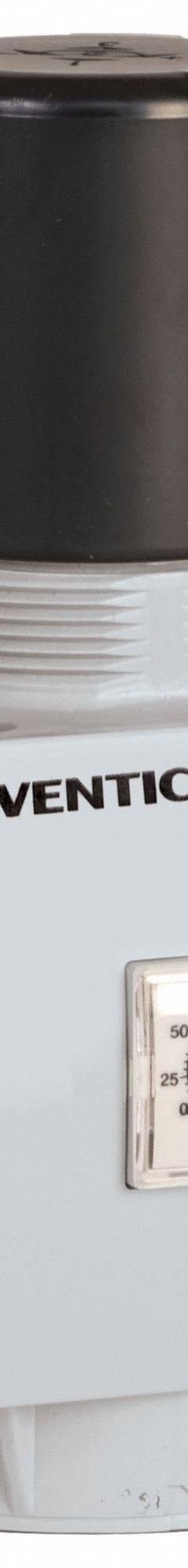

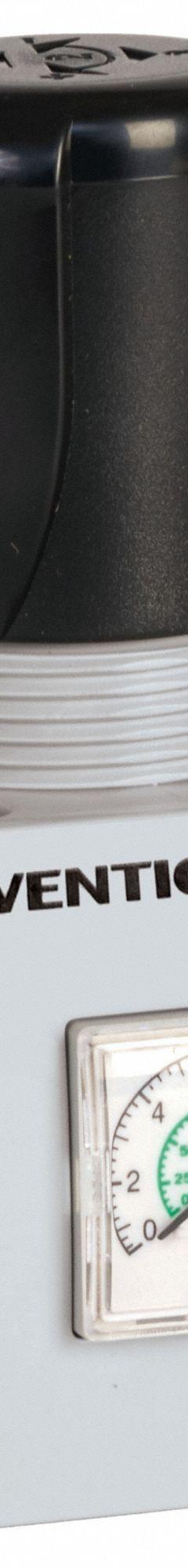

NUMATICS FRL regulators, such as the 653 series, are rated for a maximum operating pressure of 145 psig. This is a common specification across many of their regulator models, including those with port sizes from 1/4 in to 1 in NPTF. The actual working pressure should be selected based on the downstream equipment requirements, but the 145 psig limit provides a safety margin for most industrial pneumatic systems. Always verify the specific model's datasheet for exact pressure ratings, as some variants may have different limits.

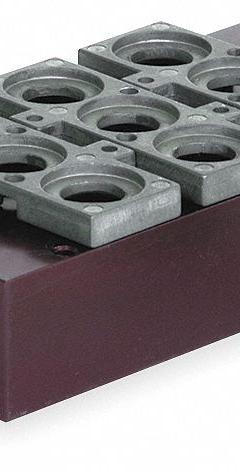

Yes, the NUMATICS L2 manifold assemblies, such as the 206-1764 model, are designed for hazardous locations and are rated as intrinsically safe. This makes them suitable for use in environments where flammable gases, vapors, or dust may be present. The manifold assembly features 6 valve ports and is part of the Aventics L2 series, which is engineered to meet safety standards for such applications. When installing in hazardous areas, ensure that the entire system, including valves and wiring, complies with local regulations and the specific classification of the location.

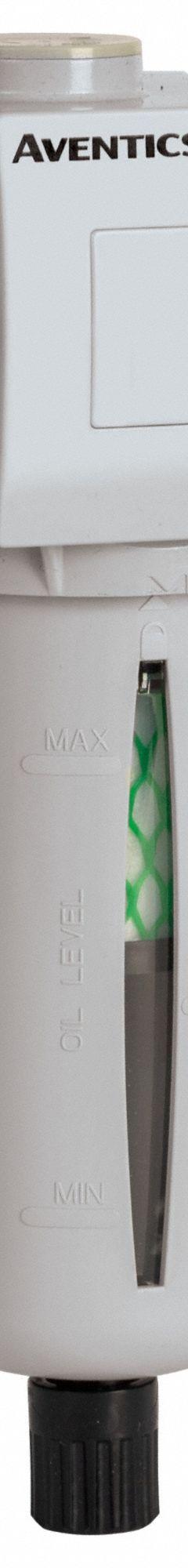

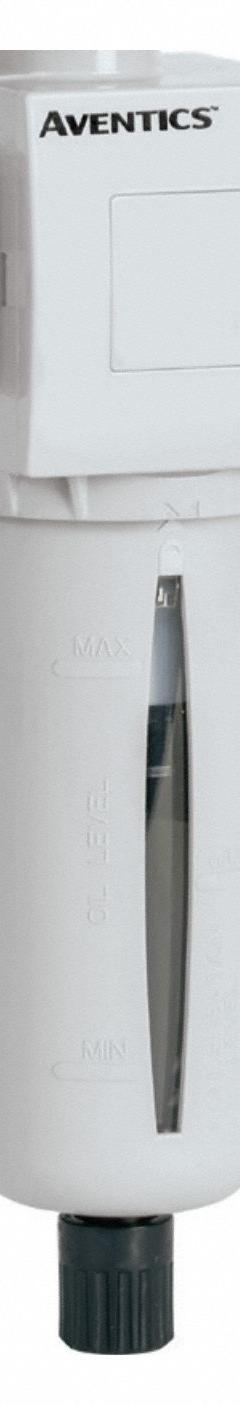

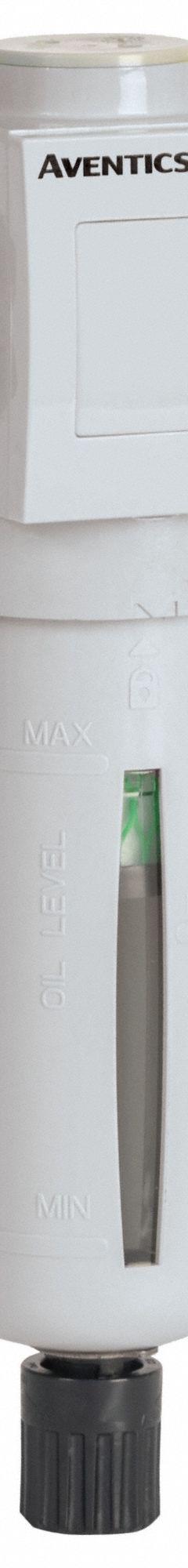

NUMATICS FRL air filters are available in various micron ratings to suit different levels of filtration. For example, the 8652ABBP2JA000N filter offers 5 micron particulate removal, while the 8653ACEM6FA00HN filter regulator provides 0.01 micron filtration. The choice depends on the sensitivity of downstream components; 5 micron filters are typical for general pneumatic systems, while 0.01 micron filters are used for applications requiring high air purity, such as in instrumentation or clean environments. Always match the filter rating to the system's requirements to avoid pressure drop or contamination issues.

NUMATICS solenoid connectors, such as the ND0315FBN0000000 cable assembly, are designed primarily for use with NUMATICS and Aventics valves. However, they may be compatible with other brands if the connector type and pin configuration match. The cable assembly has a 15 ft length and 3/8 in width, and it is typically used for pilot air control valves. For cross-brand compatibility, check the valve's solenoid connector specification (e.g., DIN 43650 or ISO 4400) and compare it with the NUMATICS connector's design. When in doubt, consult the manufacturer's documentation or contact 3G Electric for guidance.

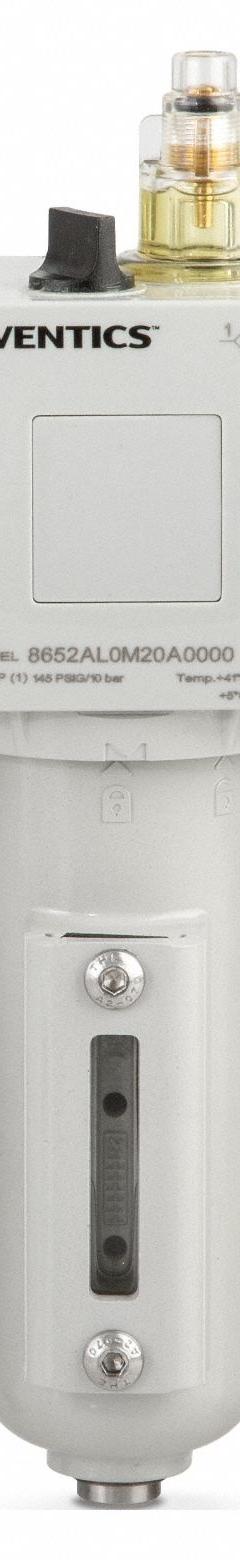

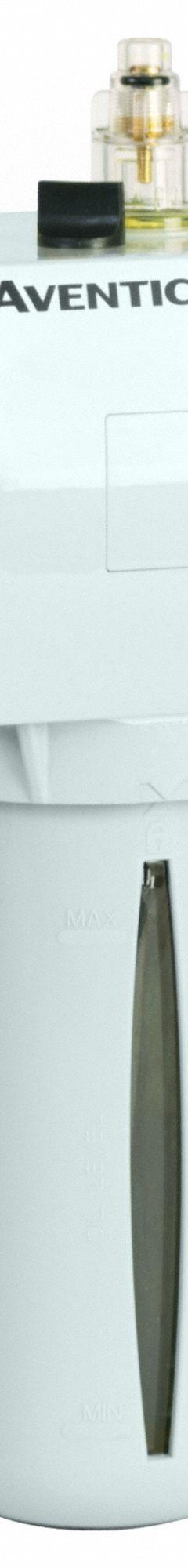

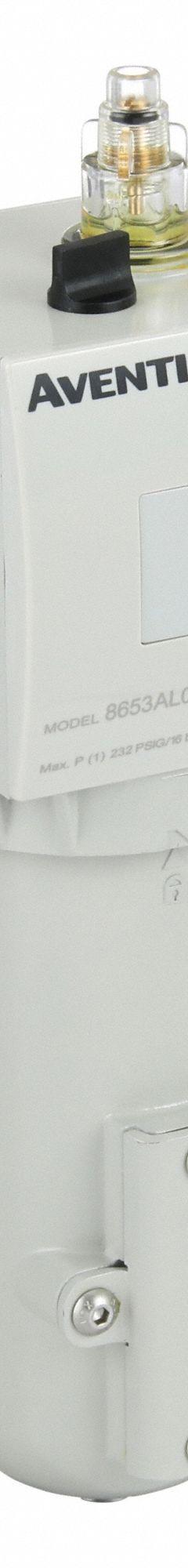

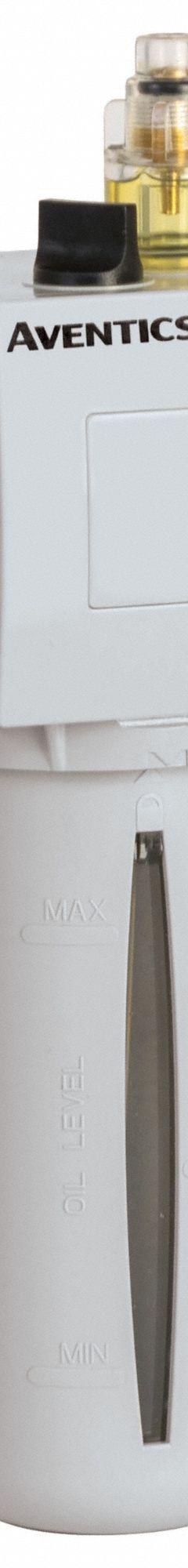

NUMATICS FRL components are constructed from materials chosen for durability and corrosion resistance. Regulators and filter regulators, like the 8653AR005FA00H0 and 8653ACEM6FA00HN, feature aluminum bodies. Lubricators, such as the 8652AL0P20A0000, also use aluminum. Filter bowls can be plastic (e.g., polycarbonate) or metal, depending on the model. Seals are typically made from NBR (nitrile) or FKM (fluorocarbon) elastomers, as seen in the 653 series filter regulator. These materials provide resistance to common industrial fluids and temperatures up to 122°F (50°C) for standard models. For higher temperature or chemical exposure, verify the specific material compatibility with your application.

NUMATICS mounting brackets, such as the 652 side mounting bracket (P652AT503860002), are designed for specific series and configurations. To select the correct bracket, identify the valve manifold series (e.g., L2, 652, 653) and the mounting orientation required (side, bottom, or panel). The bracket's part number often indicates the series and type; for example, the 652 bracket is for the 652 series. Check the manifold's dimensions and port locations to ensure the bracket aligns with mounting holes. If the manifold has multiple valve stations, you may need multiple brackets or a longer bracket. Consult the product datasheet or contact 3G Electric for assistance in matching the bracket to your specific manifold model.
