Schneider 3G-OTH-37227 — Technical Specifications

Name: Schneider 3G-OTH-37227 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever, 1NO/1NC (MPN 9001SKS72FBH37). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Maintained/Maintained/Momentary; Cam: B; DC Contact Rating: 0.27 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

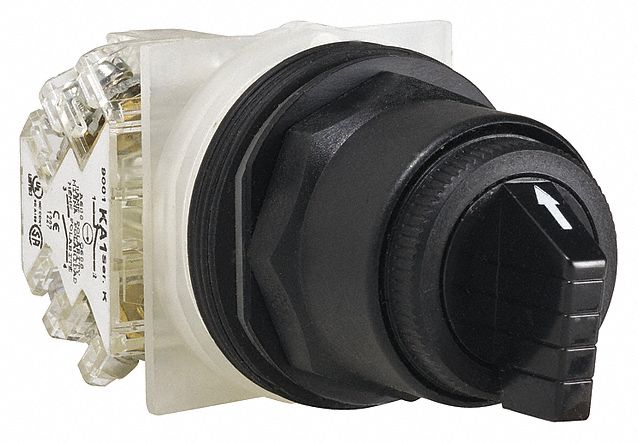

The SCHNEIDER 9001SKS72FBH37 is a 30 mm panel-mount selector switch from the 9001K series, featuring a long-handled knob with a non-illuminated polycarbonate operator head and a non-metallic bezel. It offers three positions with a maintained/maintained/momentary action and a Cam B configuration, providing On/Off/Momentary switching functions. The switch is rated for 6 A at 120 V AC and 0.27 A at 250 V DC, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	B
Brand	SCHNEIDER
Action	Maintained/Maintained/Momentary
Series	9001K
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.27 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS72FBH37
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	Momentary
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
