Chainflex 3G-OTH-47175 — Technical Specifications

Name: Chainflex 3G-OTH-47175 CHAINFLEX Motor Cable: 4 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF34-250-04). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: NFPA 79-2012 Chapter 12.9; Product Type: Motor Cable.
Brand: Chainflex

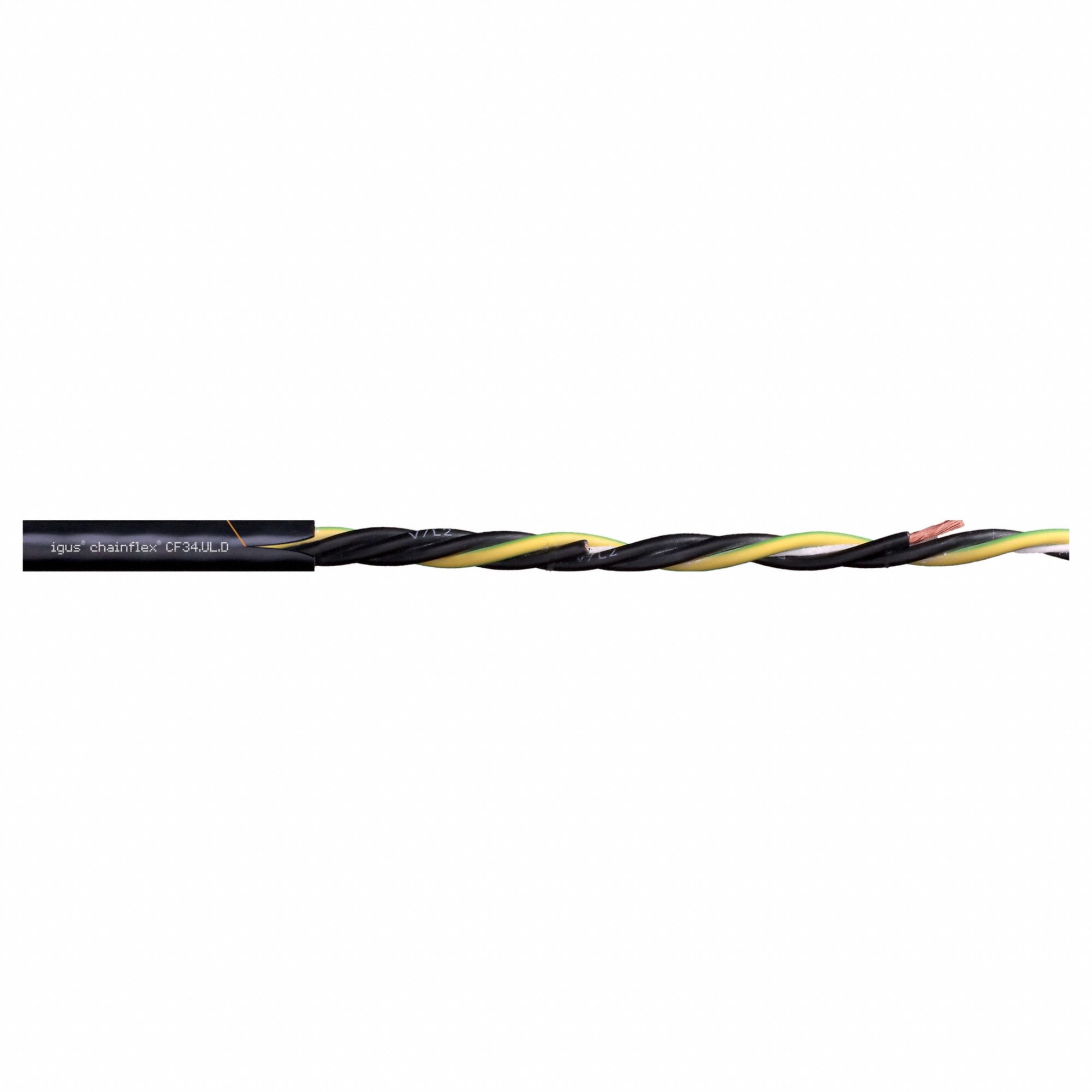

The CHAINFLEX Motor Cable: 4 AWG (SKU 801M10, MPN CF34-250-04) is a continuous flexing power cable from the Chainflex series, designed as a motor cable with 4 conductors and a TPR jacket rated at 1,000 V. It includes a ground conductor, is oil and grease resistant, and complies with NFPA 79-2012 Chapter 12.9. The cable offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	NFPA 79-2012 Chapter 12.9
Cable Series	CF34-UL
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF34-250-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
