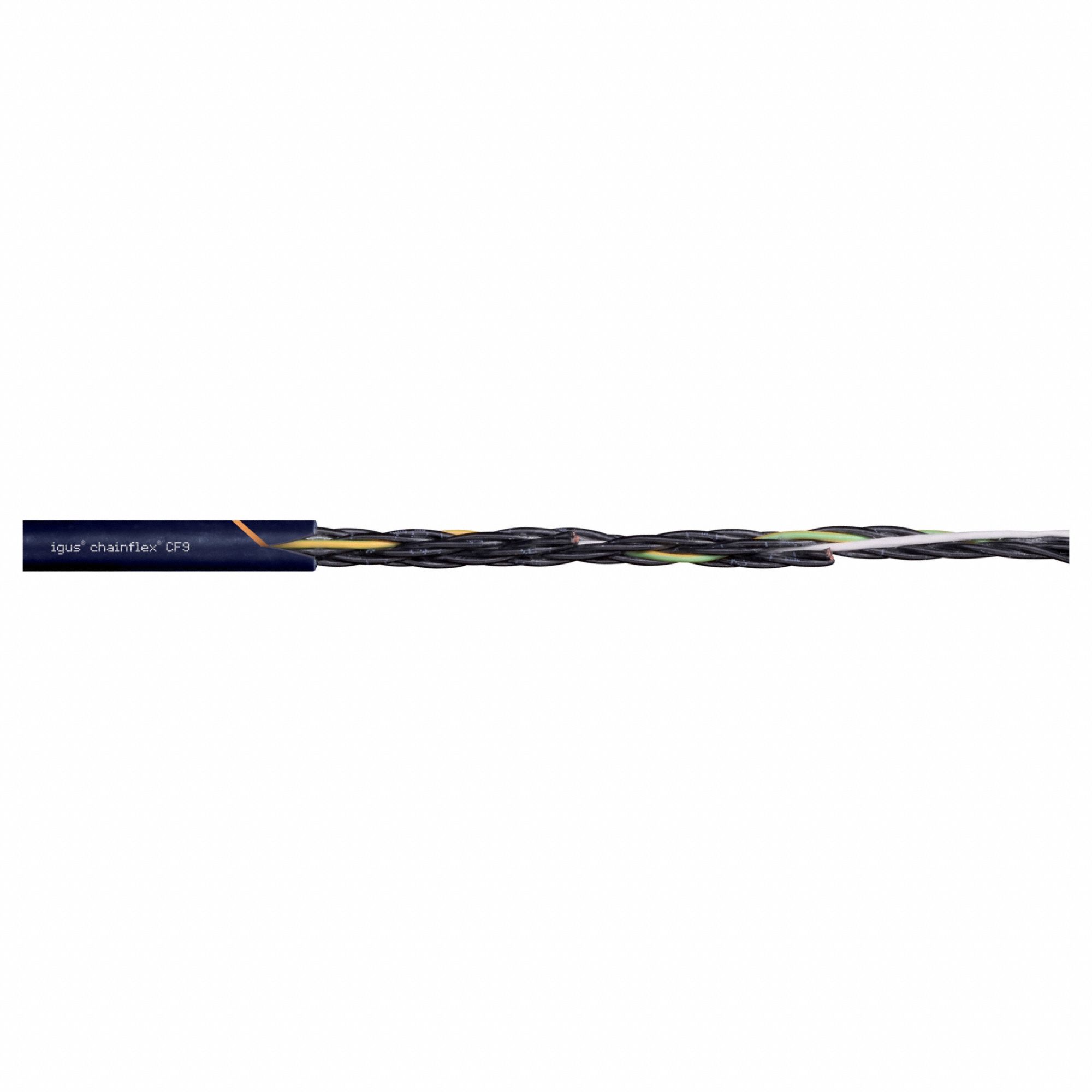

Chainflex 3G-OTH-52115 — Technical Specifications

Name: Chainflex 3G-OTH-52115 CHAINFLEX Control Cable: 17 AWG, 25 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-10-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: 2011/65/EU (RoHS Compliant-II).
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF9 series, featuring 25 conductors of single copper wire with black and white numbering, a TPR jacket, and a 300 V rating. It includes a ground conductor, is flame retardant, and complies with 2011/65/EU (RoHS Compliant-II). Minimum bend radius factors are 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	2011/65/EU (RoHS Compliant-II)
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF9-10-25
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
