Chainflex 3G-OTH-52495 — Technical Specifications

Name: Chainflex 3G-OTH-52495 CHAINFLEX Control Cable: 16 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-15-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: CEI 20-35.
Brand: Chainflex

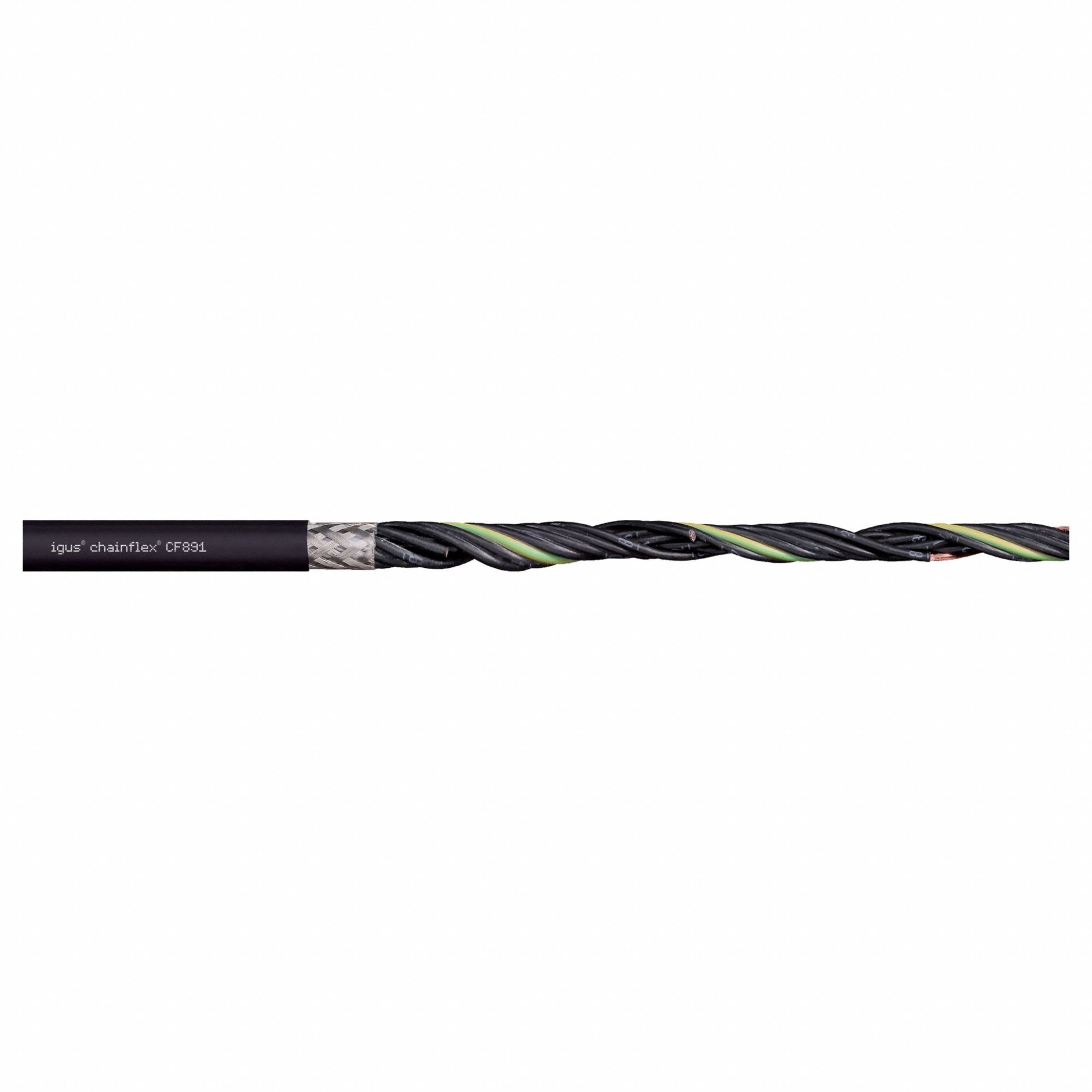

The CHAINFLEX Control Cable: 16 AWG (SKU 801KE2, MPN CF891-15-04) is a continuous flexing control cable from the Chainflex series, featuring 4 copper conductors with a single conductor configuration and a PUR jacket rated at 600 V. It includes a ground conductor, is flame retardant, and complies with CEI 20-35 standards. Minimum bend radius factors are 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF891-15-04
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
