Chainflex 3G-OTH-54173 — Technical Specifications

Name: Chainflex 3G-OTH-54173 CHAINFLEX Control Cable: 18 AWG, 5 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-07-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: PV 3.10.7 Status 1992.
Brand: Chainflex

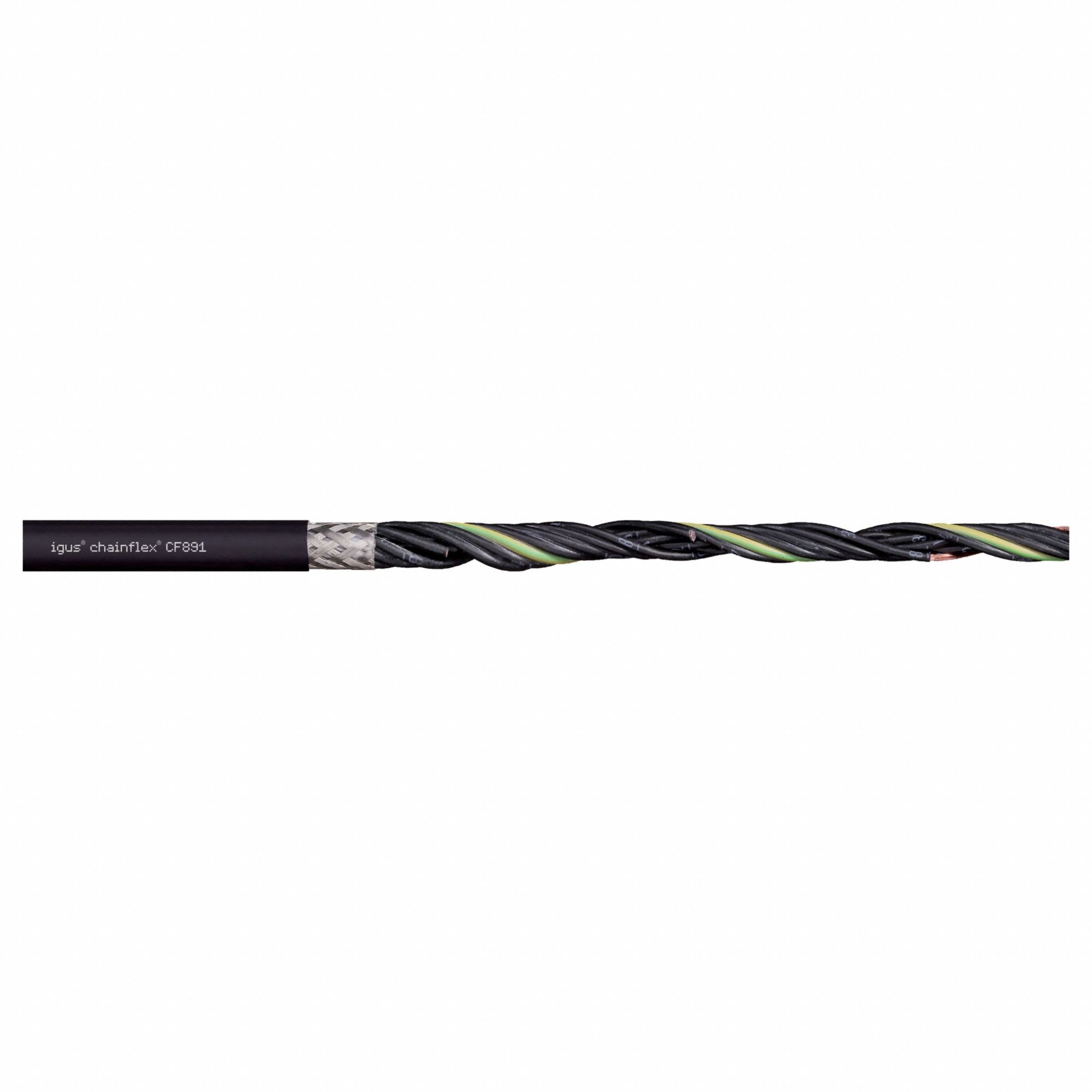

The CHAINFLEX Control Cable: 18 AWG (SKU 801KC5, MPN CF891-07-05) is a continuous flexing control cable from the Chainflex series. It features 5 conductors of 18 AWG copper with a single conductor configuration, includes a ground, and has a PUR jacket rated for 600 V. The cable is flame retardant and meets PV 3.10.7 Status 1992 standards, with minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF891-07-05
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
