Chainflex 3G-OTH-46830 — Technical Specifications

Name: Chainflex 3G-OTH-46830 CHAINFLEX Control Cable: 20 AWG, 25 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-05-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: IEC 60332-1-2.
Brand: Chainflex

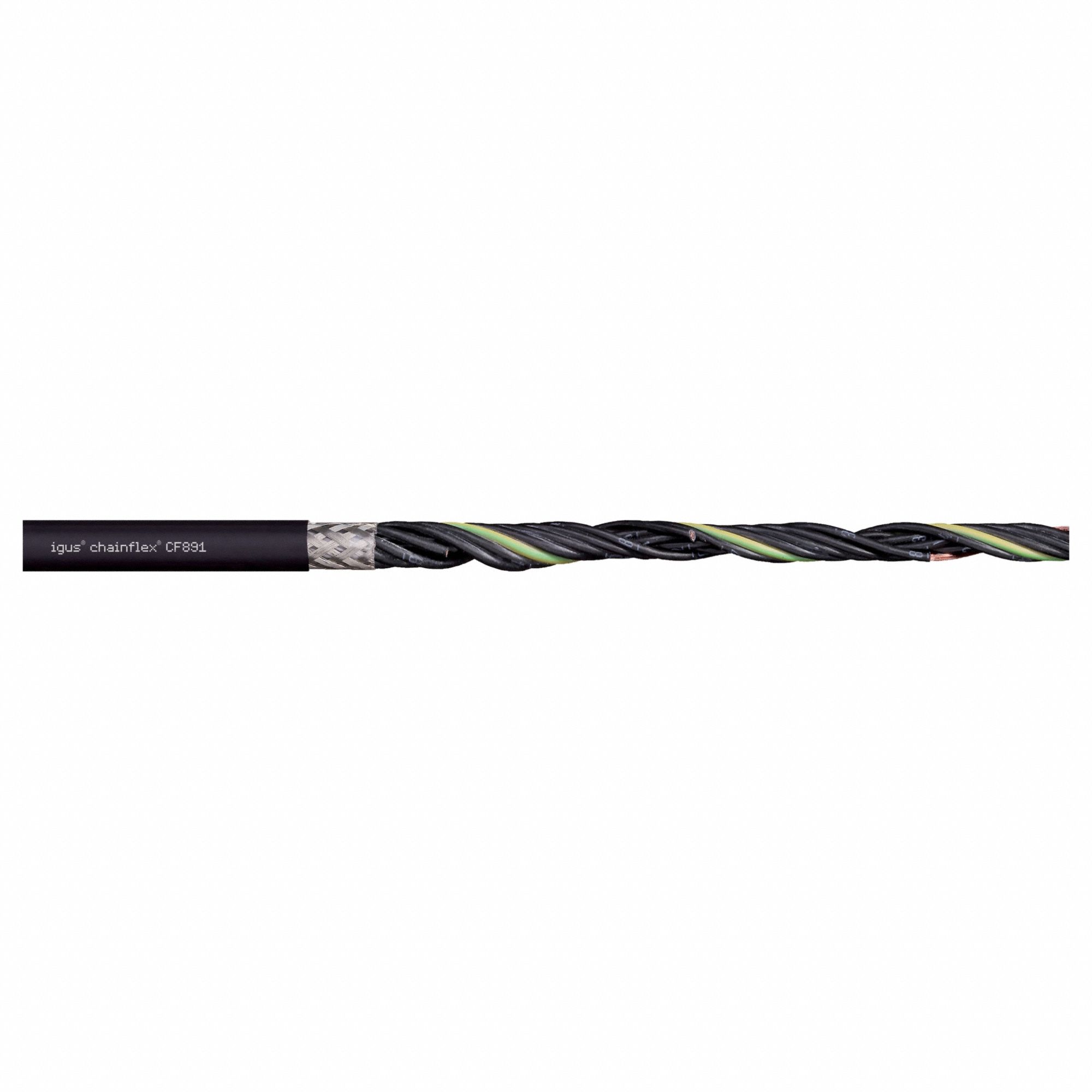

The CHAINFLEX Control Cable: 20 AWG (SKU 801KC1, MPN CF891-05-25) is a continuous flexing control cable from the Chainflex CF891 series. It features 25 conductors of single copper wire, a PUR jacket, 600 V rating, and includes a ground conductor. The cable is UV/sunlight resistant, complies with IEC 60332-1-2, and has minimum bend radius factors of 7 x OD (fixed), 10 x OD (flexible), and 12.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF891-05-25
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
