Chainflex 3G-OTH-52449 — Technical Specifications

Name: Chainflex 3G-OTH-52449 CHAINFLEX Control Cable: 20 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF890-05-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: EAC TC RU C-DE. ME77.B.01560.
Brand: Chainflex

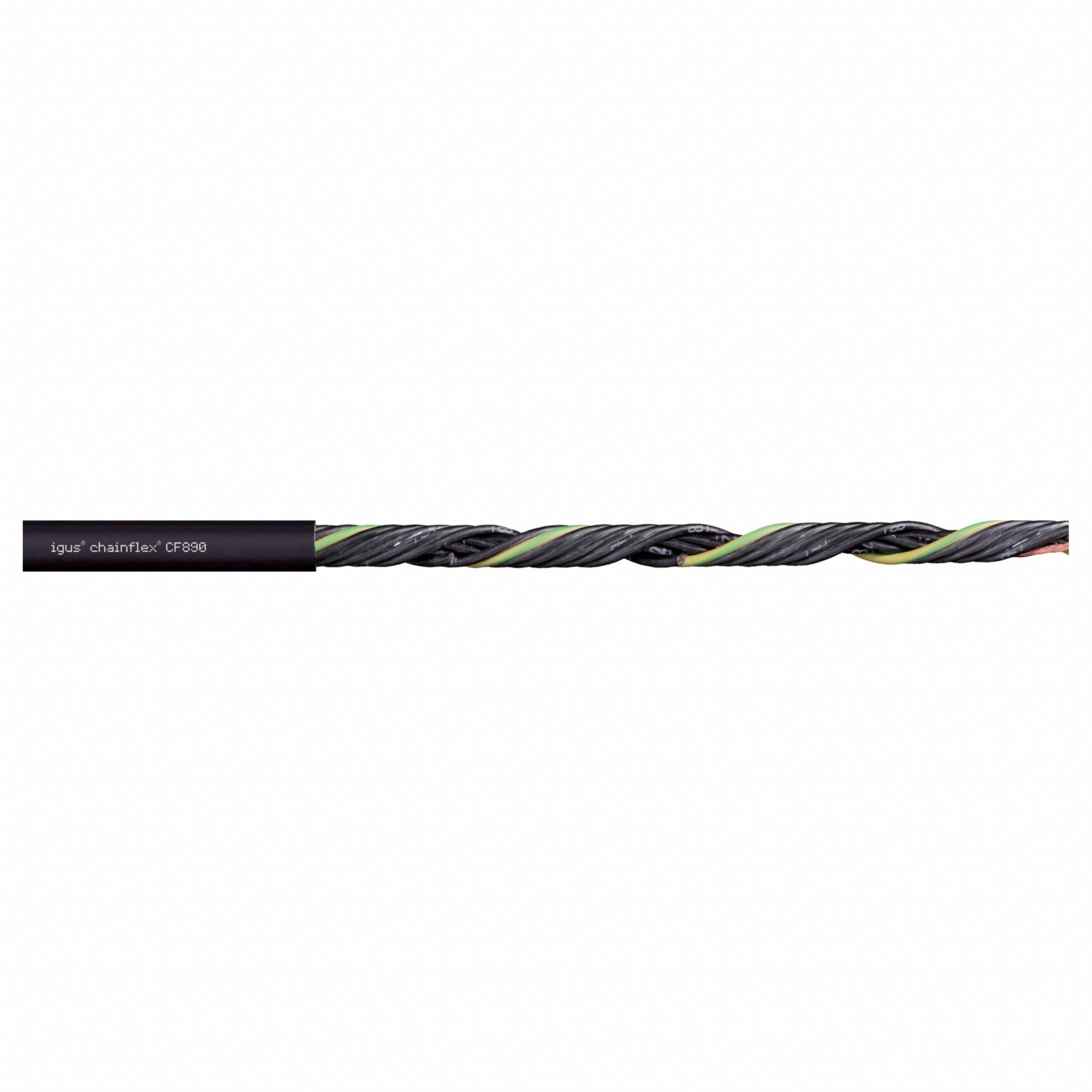

The CHAINFLEX Control Cable: 20 AWG (SKU 801K67, MPN CF890-05-04) is a continuous flexing control cable from the Chainflex series, featuring 4 conductors of single copper wire with a PUR jacket rated at 600 V. It includes a ground conductor and is oil and grease resistant, with minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications. This cable complies with EAC standard TC RU C-DE. ME77.B.01560.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	EAC TC RU C-DE. ME77.B.01560
Cable Series	CF890
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF890-05-04
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
