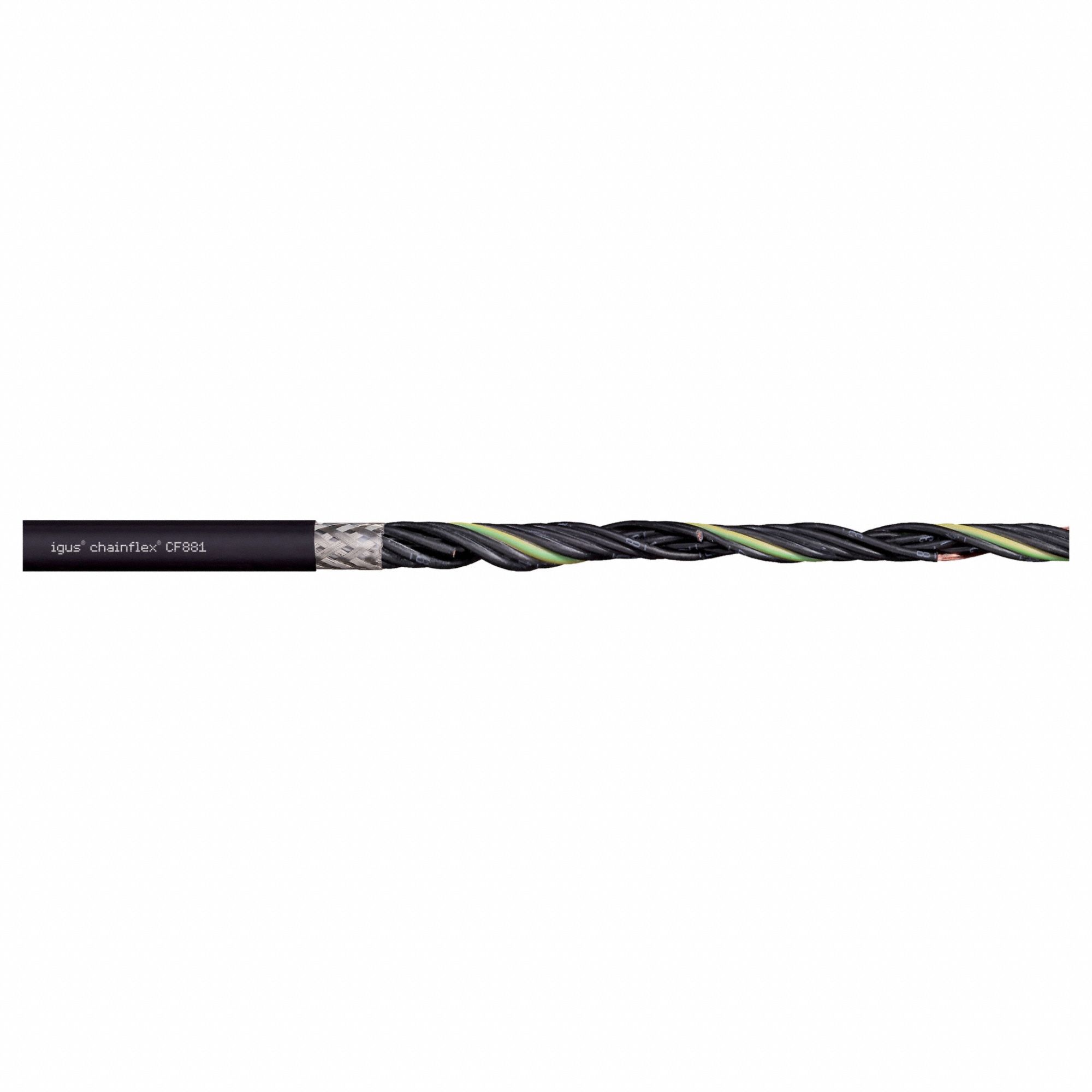

Chainflex 3G-OTH-49352 — Technical Specifications

Name: Chainflex 3G-OTH-49352 CHAINFLEX Control Cable: 16 AWG, 3 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF881-15-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: IEC 60332-1-2.
Brand: Chainflex

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex series, model CF881-15-03, with 3 conductors and a PVC jacket rated at 300 V. It features copper single conductors, includes a ground, and is oil and grease resistant per IEC 60332-1-2. Minimum bend radius factors are 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Cable Series	CF881
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF881-15-03
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
