Chainflex 3G-OTH-51974 — Technical Specifications

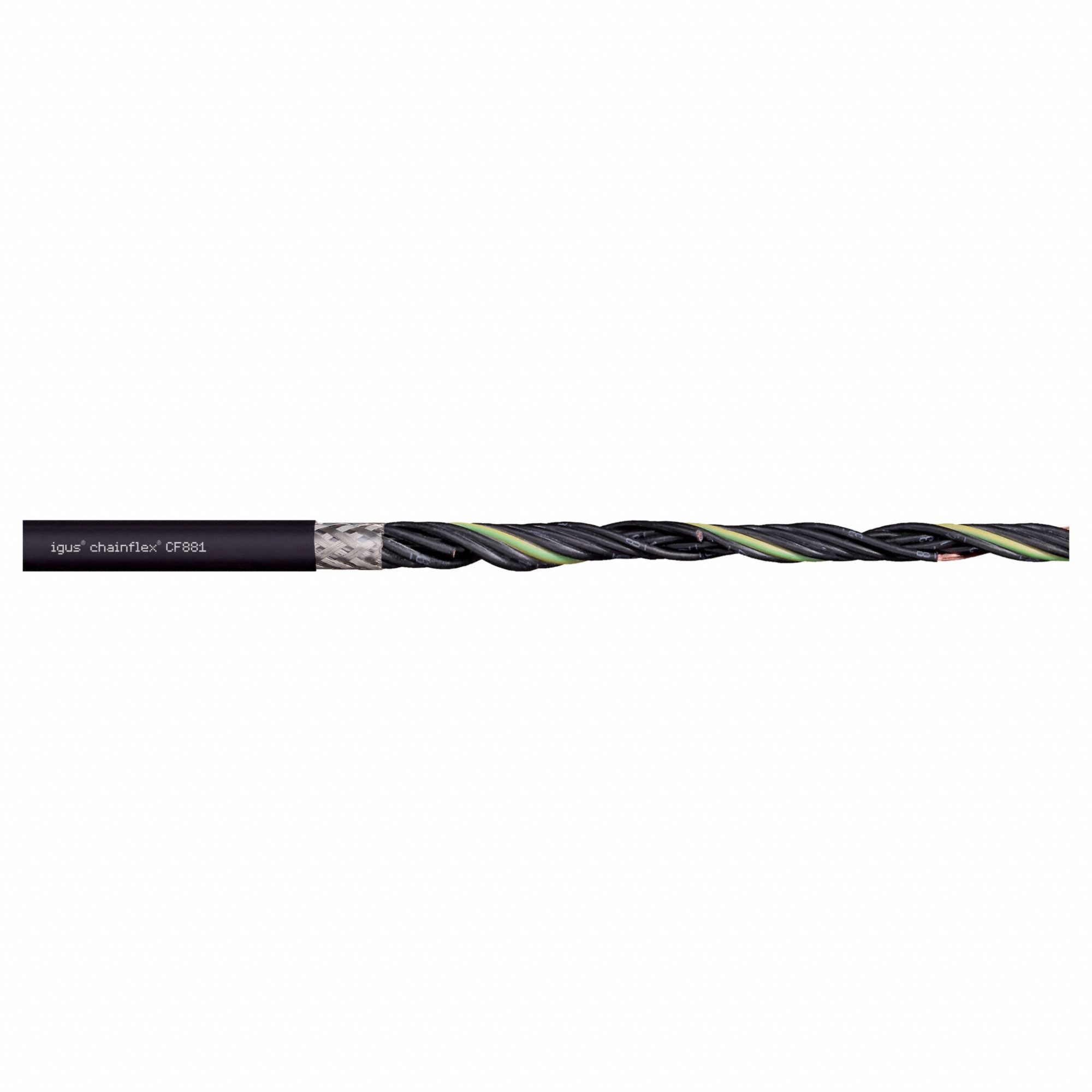

The CHAINFLEX Control Cable: 18 AWG (SKU 801K38, MPN CF881-07-18) is a continuous flexing control cable from the Chainflex series. It features 18 conductors of 18 AWG copper wire with a single conductor configuration, a PVC jacket, and a 300 V rating. The cable includes a ground conductor, is oil and grease resistant, and meets PV 3.10.7 Status 1992 standards. Minimum bend radius factors are 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.
