Chainflex 3G-OTH-51719 — Technical Specifications

Name: Chainflex 3G-OTH-51719 CHAINFLEX Control Cable: 18 AWG, 2 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF881-07-02). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: IEC 60332-1-2.
Brand: Chainflex

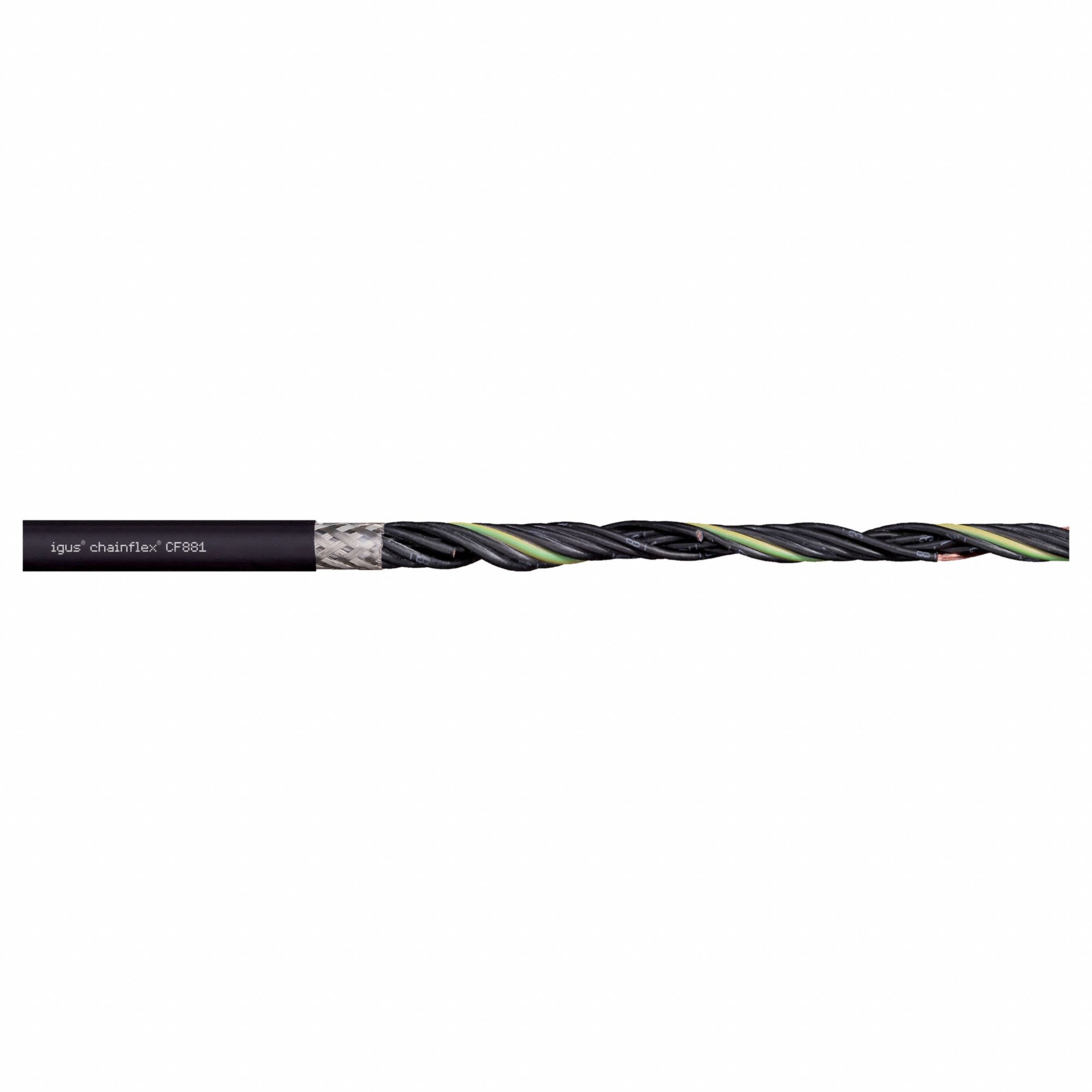

The CHAINFLEX Control Cable: 18 AWG (SKU 801K32) is a continuous flexing control cable from the Chainflex series, model CF881-07-02. It features 2 copper conductors, a PVC jacket, and a 300 V rating, with minimum bend radius factors of 7 x OD (fixed), 10 x OD (flexible), and 12.5 x OD (e-chain). This cable is oil and grease resistant, complies with IEC 60332-1-2, and does not include a ground conductor.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Cable Series	CF881
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF881-07-02
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
