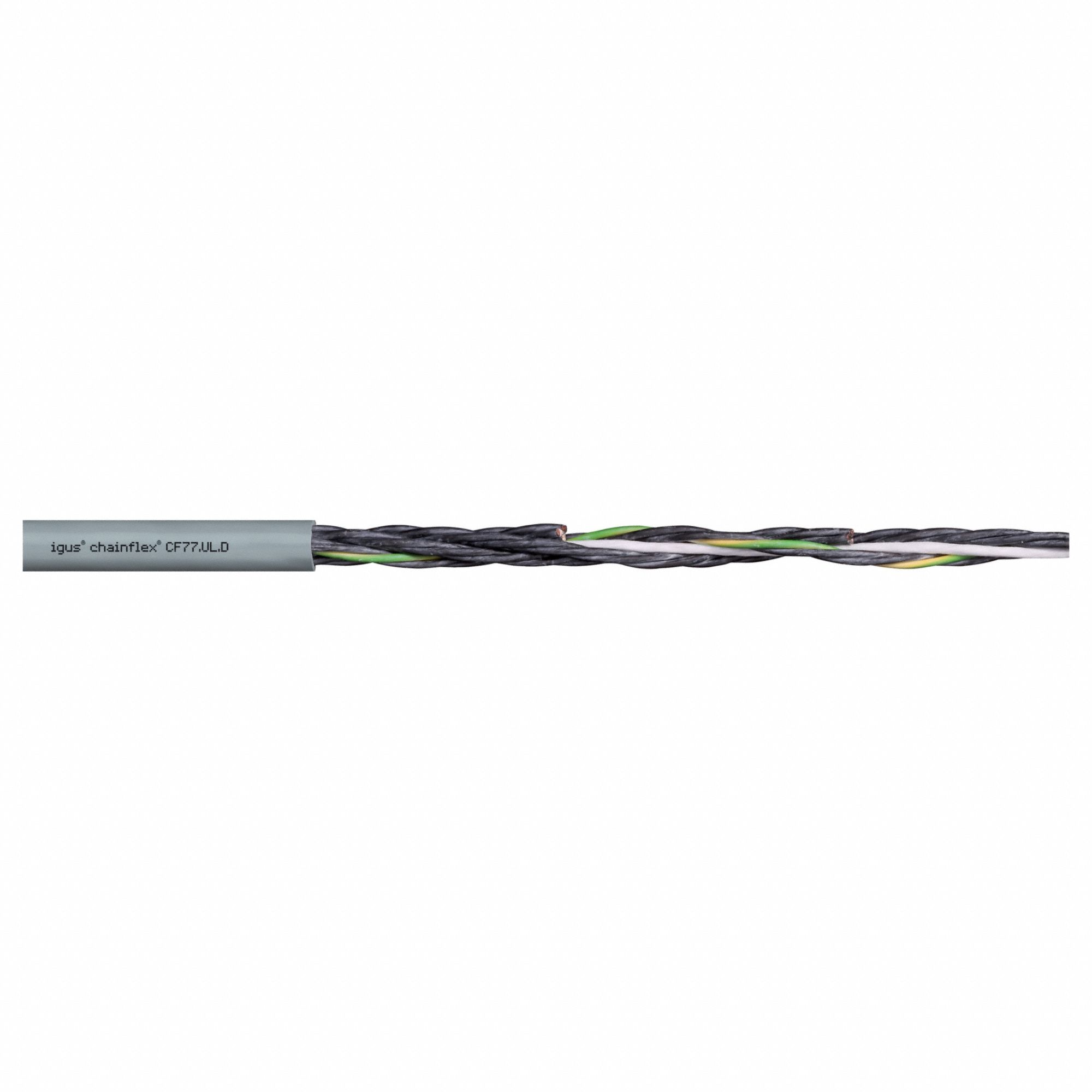

Chainflex 3G-OTH-51012 — Technical Specifications

Name: Chainflex 3G-OTH-51012 CHAINFLEX Control Cable: 20 AWG, 30 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-05-30). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: DNV 61 935-14 HH.
Brand: Chainflex

CHAINFLEX Control Cable: 20 AWG, 30 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-05-30). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: DNV 61 935-14 HH.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	DNV 61 935-14 HH
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-05-30
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
