Chainflex 3G-OTH-54231 — Technical Specifications

Name: Chainflex 3G-OTH-54231 CHAINFLEX Control Cable: 22 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 300 V (MPN CF77-UL-034INI). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: CF77.UL.05.12.D (Outer Jacket Material).
Brand: Chainflex

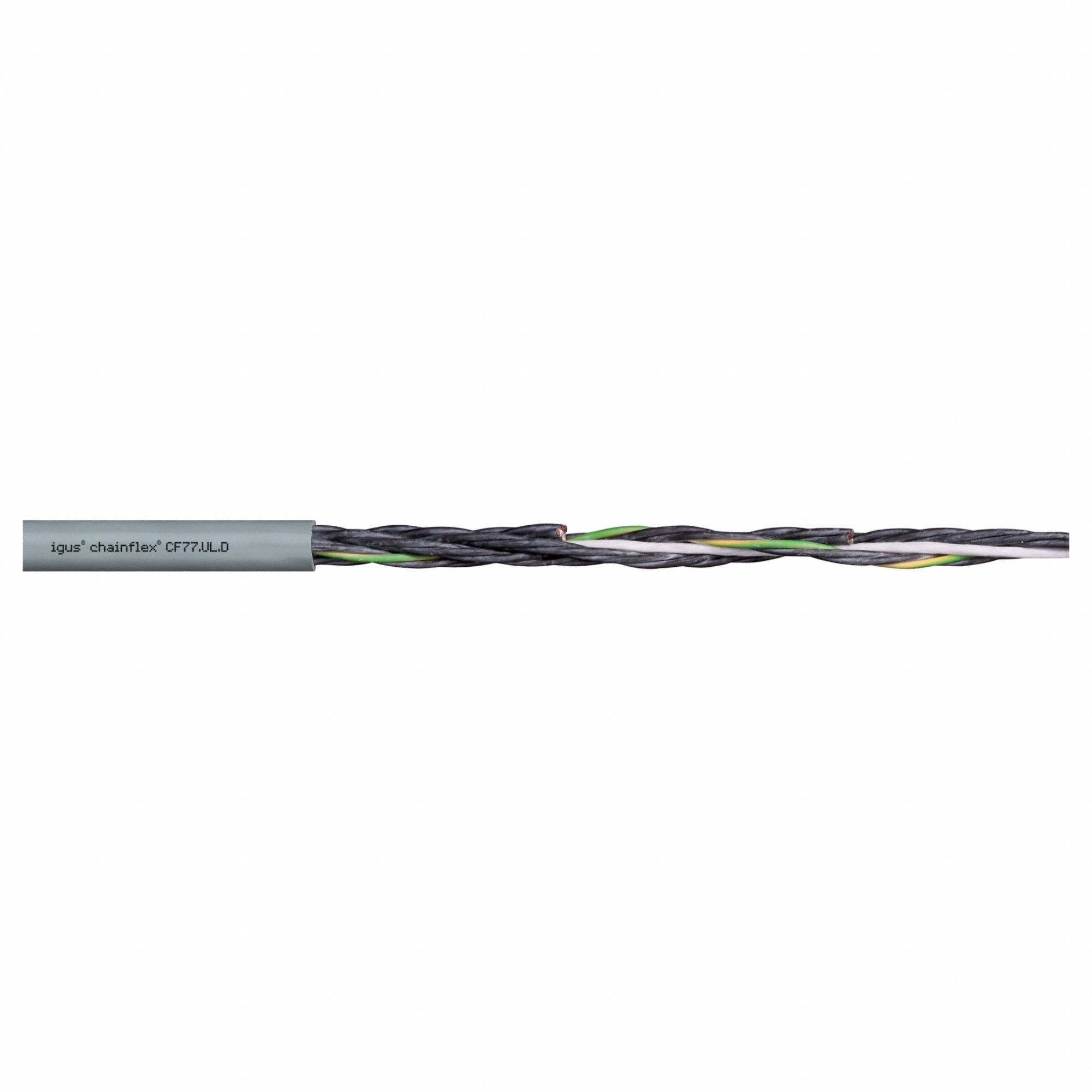

The CHAINFLEX Control Cable: 22 AWG is a continuous flexing control cable from the Chainflex series, model CF77-UL-034INI. This 4-conductor, 22 AWG cable features a copper conductor, PUR jacket, 300 V rating, and includes a ground. It is coolant resistant and offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CF77.UL.05.12.D (Outer Jacket Material)
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-034INI
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
