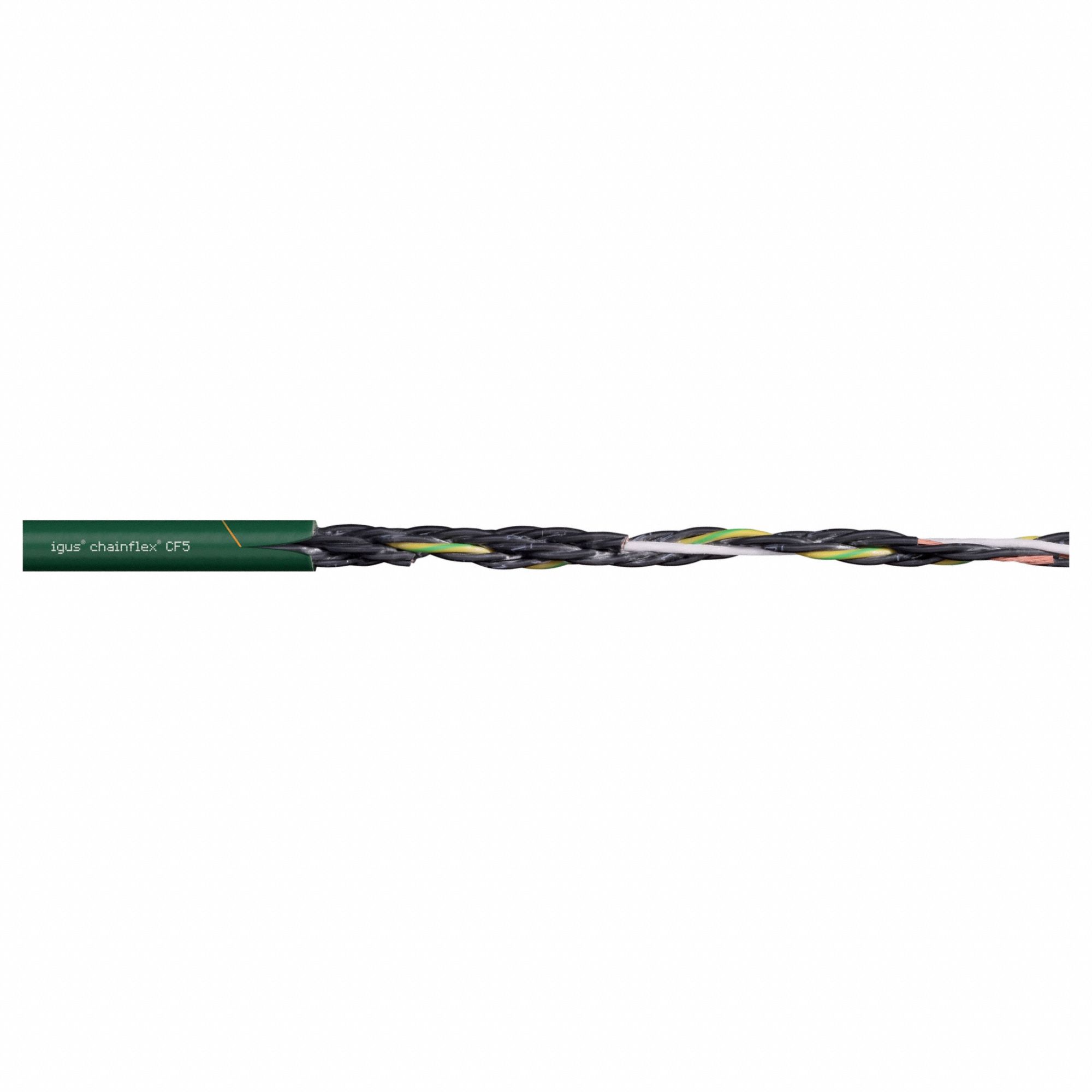

Chainflex 3G-OTH-46873 — Technical Specifications

Name: Chainflex 3G-OTH-46873 CHAINFLEX Control Cable: 20 AWG, 25 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-05-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CE 2014/35/EU.
Brand: Chainflex

CHAINFLEX Control Cable: 20 AWG, 25 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-05-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CE 2014/35/EU.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-05-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
