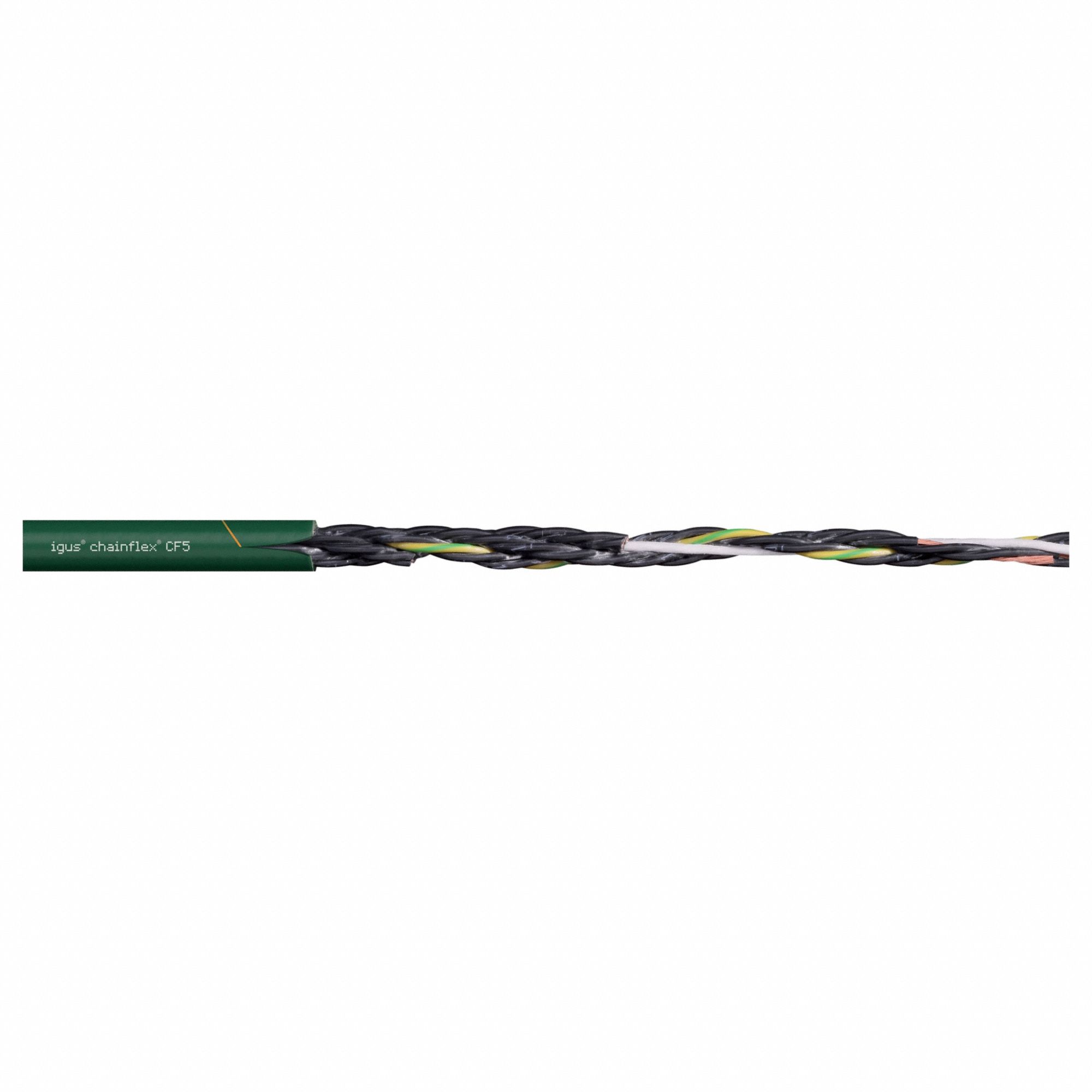

Chainflex 3G-OTH-46092 — Technical Specifications

Name: Chainflex 3G-OTH-46092 CHAINFLEX Control Cable: 20 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-05-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CF130.15.07.UL ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

CHAINFLEX Control Cable: 20 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-05-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CF130.15.07.UL ISO Class 1 (Outer Jacket Material).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CF130.15.07.UL ISO Class 1 (Outer Jacket Material)
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-05-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
