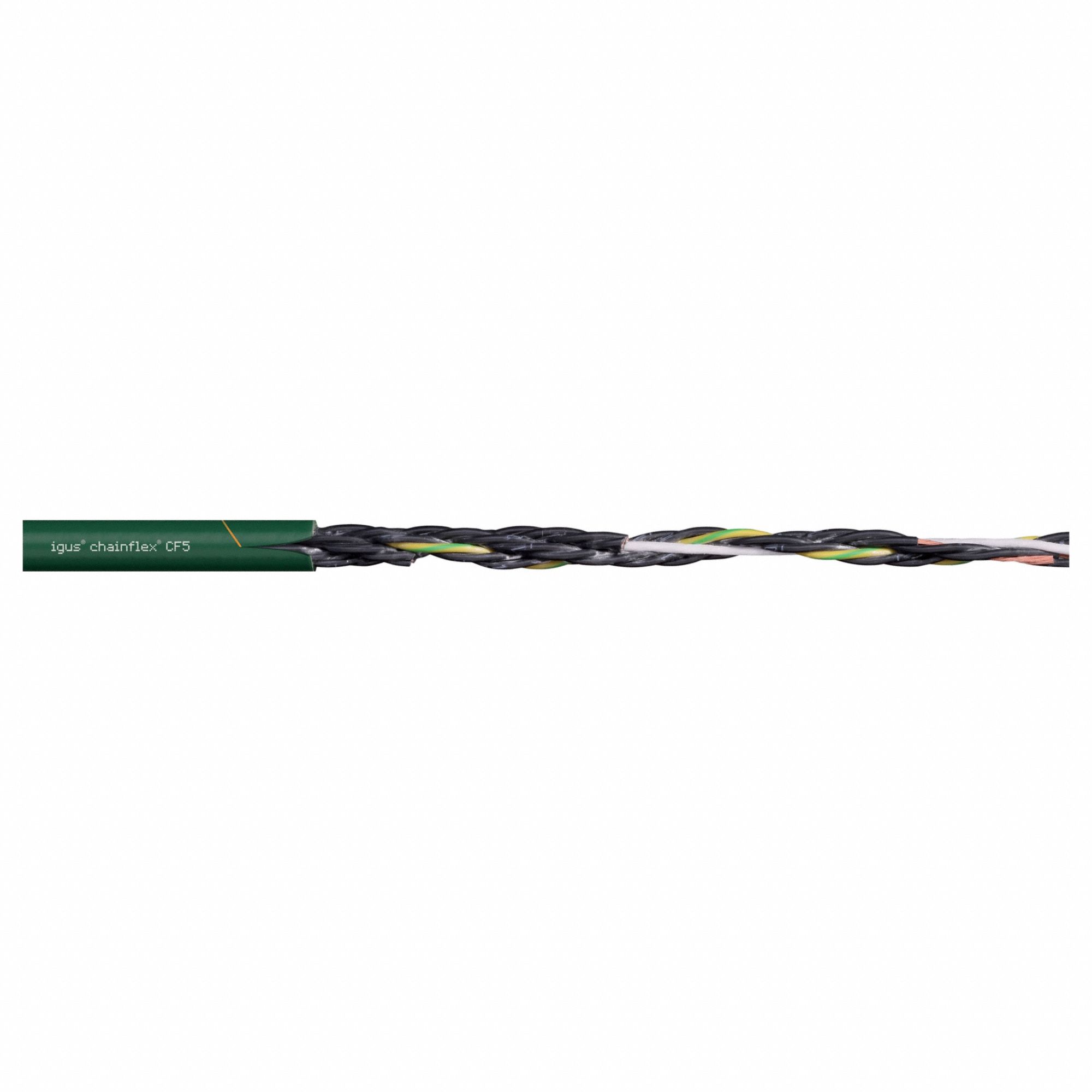

Chainflex 3G-OTH-51743 — Technical Specifications

Name: Chainflex 3G-OTH-51743 CHAINFLEX Control Cable: 20 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF5-05-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: NFPA 79-2012 Chapter 12.9.
Brand: Chainflex

CHAINFLEX Control Cable: 20 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF5-05-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: NFPA 79-2012 Chapter 12.9.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	NFPA 79-2012 Chapter 12.9
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-05-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
