Chainflex 3G-OTH-51615 — Technical Specifications

Name: Chainflex 3G-OTH-51615 CHAINFLEX Control Cable: 12 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-40-05). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: EAC TC RU C-DE. ME77.B.01254; Product Type: Control Cable.
Brand: Chainflex

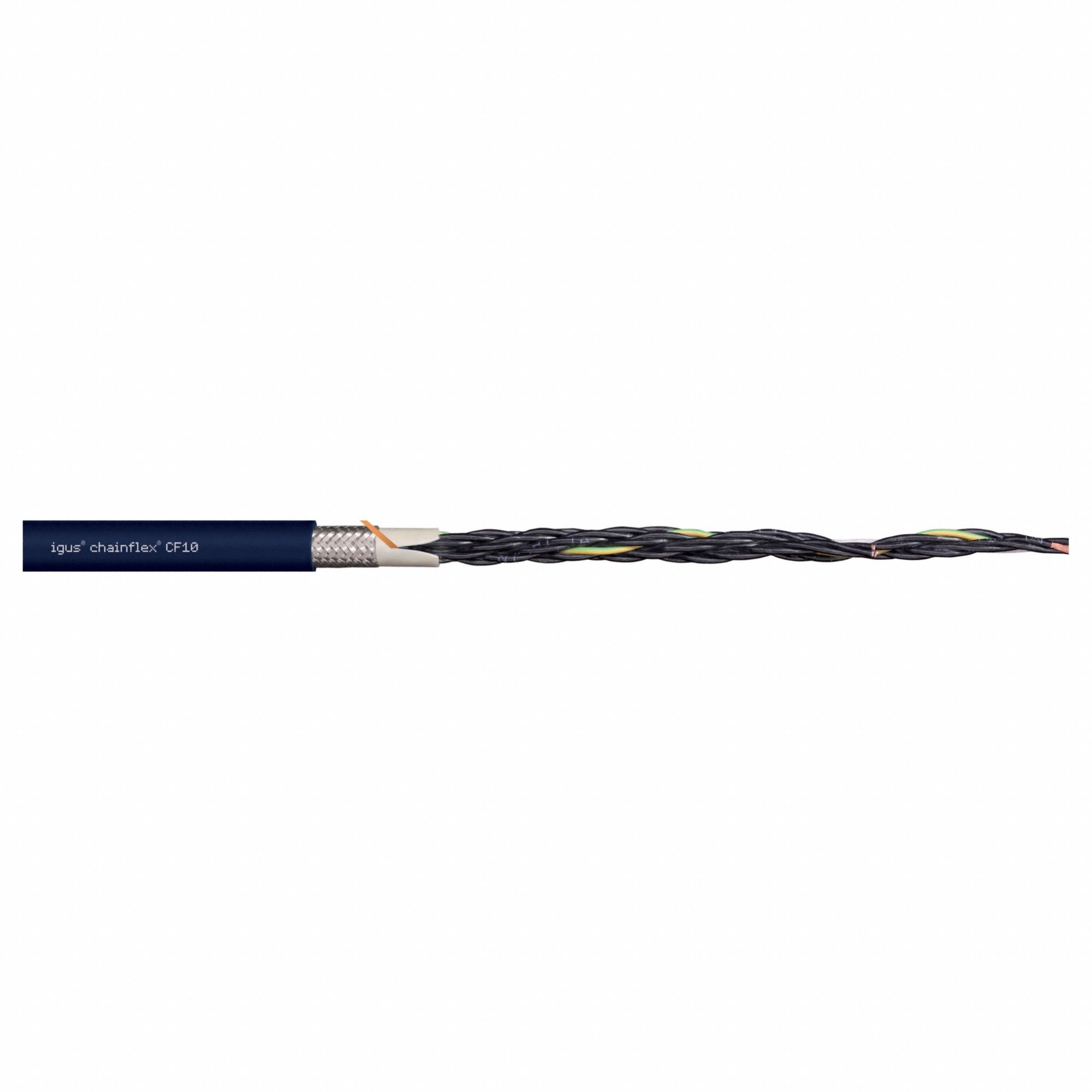

The CHAINFLEX CF10-UL Control Cable (12 AWG, 5 conductors, MPN CF10-40-05) is a continuous flexing control cable with a TPR jacket rated at 300 V. It features copper conductors, includes a ground, and is UV/sunlight resistant. Minimum bend radius factors are 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications. It complies with EAC TC RU C-DE. ME77.B.01254 standards.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Standards	EAC TC RU C-DE. ME77.B.01254
Cable Series	CF10-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Manufacturer Part Number	CF10-40-05
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
