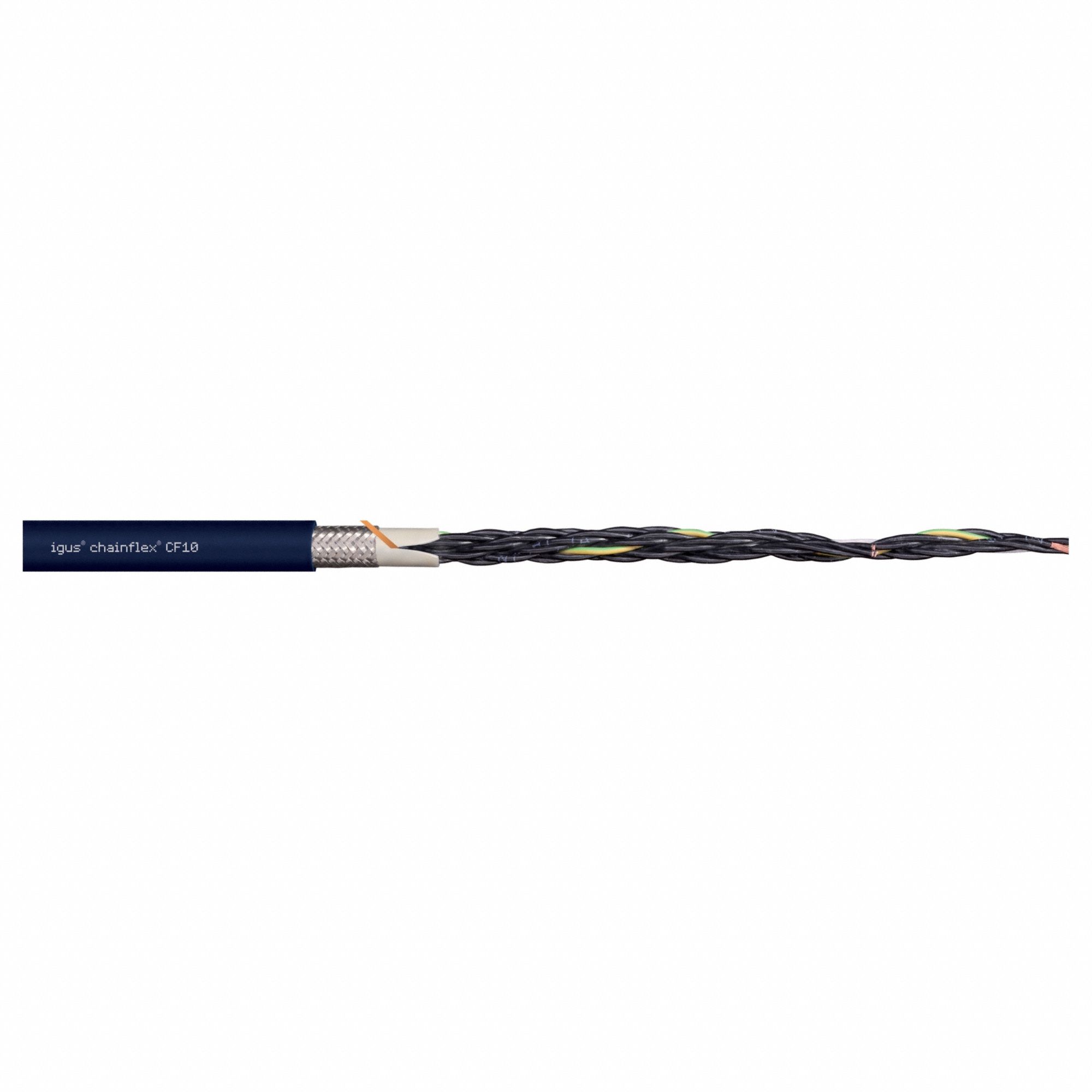

Chainflex 3G-OTH-49108 — Technical Specifications

Name: Chainflex 3G-OTH-49108 CHAINFLEX Control Cable: 17 AWG, 3 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-10-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Bending Resistance; Standards: CF9.15.07 ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

CHAINFLEX Control Cable: 17 AWG, 3 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-10-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Bending Resistance; Standards: CF9.15.07 ISO Class 1 (Outer Jacket Material).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CF9.15.07 ISO Class 1 (Outer Jacket Material)
Cable Series	CF10
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Bending Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF10-10-03
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
