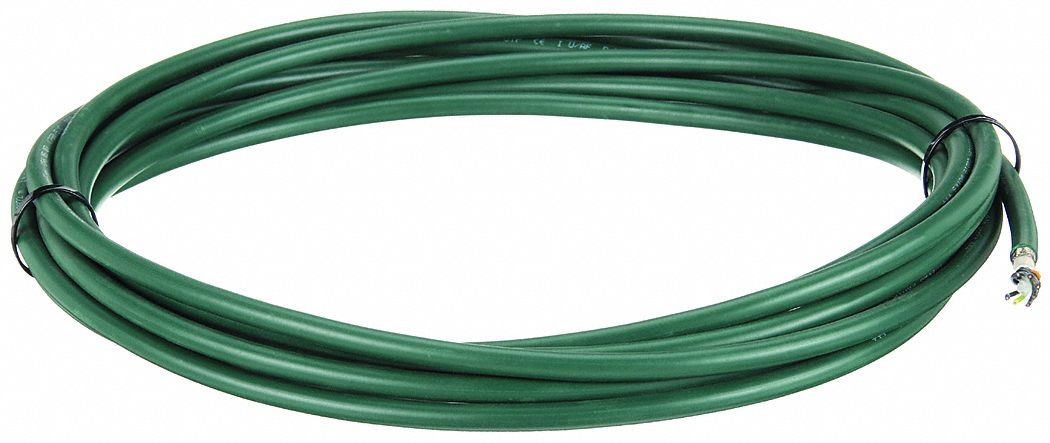

Chainflex 3G-OTH-53688 — Technical Specifications

Name: Chainflex 3G-OTH-53688 CHAINFLEX Control Cable: 16 AWG, 7 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF6-15-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable: 16 AWG (SKU 2TZC1) is a continuous flexing control cable from the Chainflex CF6 series. This 7-conductor, 16 AWG cable features a copper conductor with black and white numbering, includes a ground, and is oil and grease resistant. It has a PVC jacket, is rated 600 V, and meets CE standards, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-15-07
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
