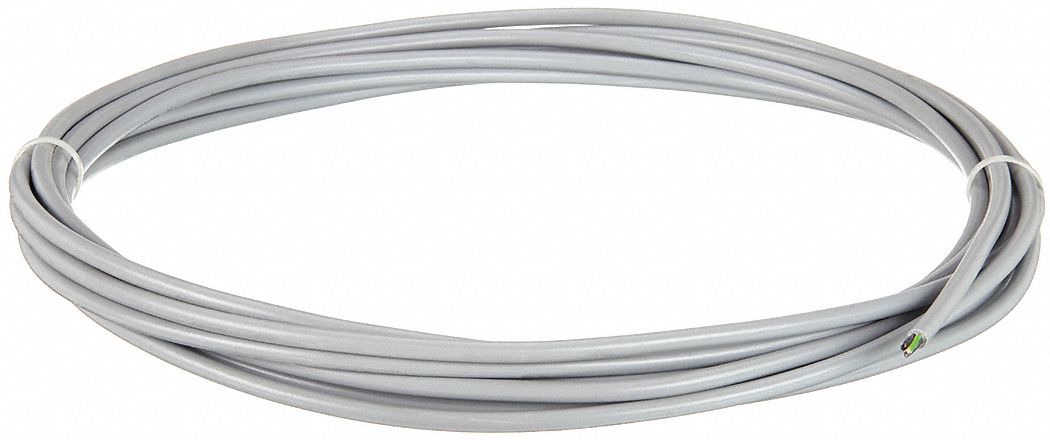

Chainflex 3G-OTH-53111 — Technical Specifications

Name: Chainflex 3G-OTH-53111 CHAINFLEX Control Cable: 18 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-07-04-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: CE.
Brand: Chainflex

CHAINFLEX Control Cable: 18 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-07-04-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: CE.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-07-04-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
