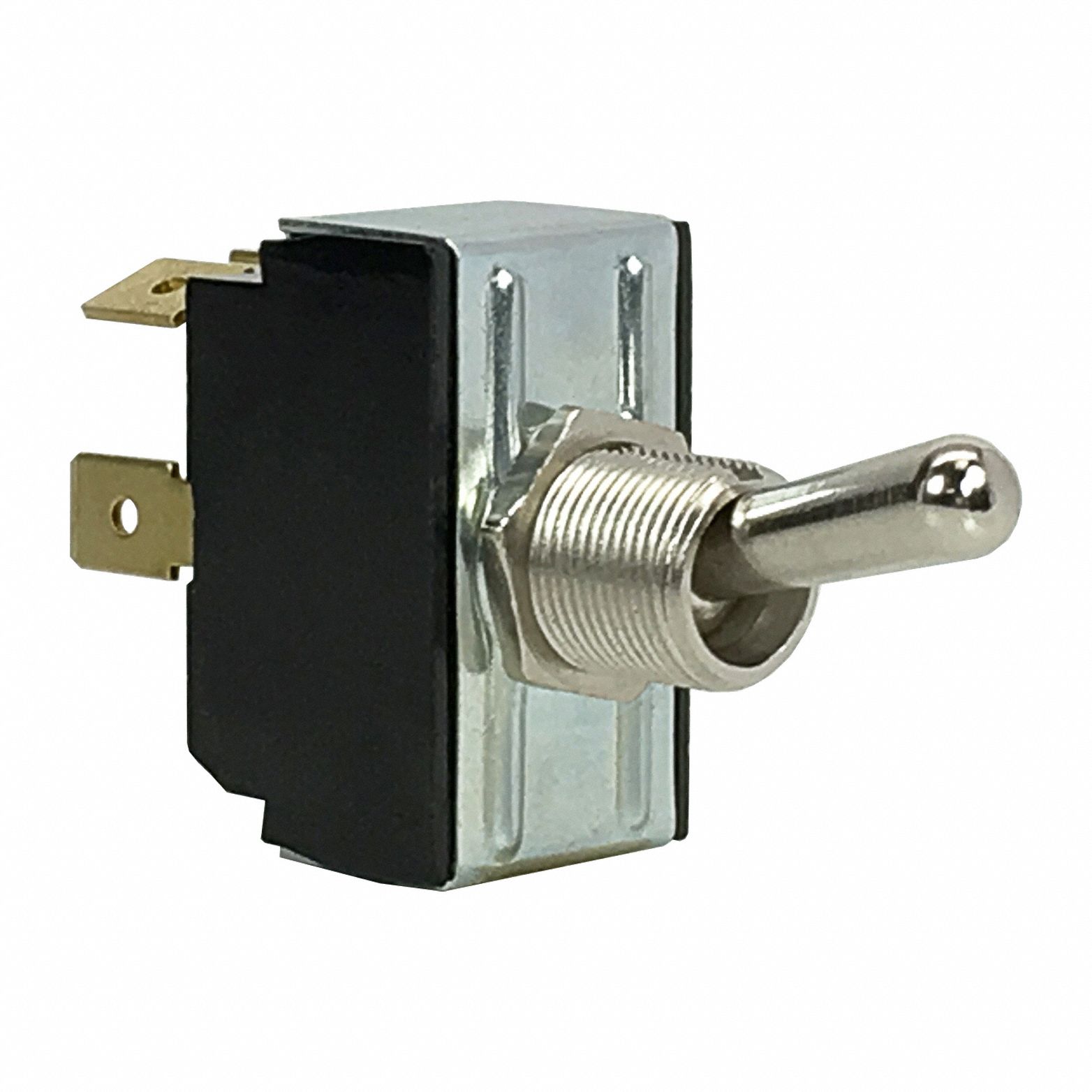

Carling Technologies 3G-OTH-34810 — Technical Specifications

Name: Carling Technologies 3G-OTH-34810 CARLING TECHNOLOGIES Toggle Switch: 2 Position, 6 Connections, DPDT, Quick Connect Tab Connection (MPN 2GL51-73). Key specifications — AC Contact Rating: 15 A @ 125 V; Switch Function Configuration: On/On; Brand: CARLING TECHNOLOGIES; Series: G; Horsepower: 3/4 hp.
Brand: Carling Technologies

The CARLING TECHNOLOGIES Toggle Switch is a panel-mount, 2-position switch from the G Series. It features a DPDT contact configuration with 6 quick-connect tab connections and an On/On switch function. The switch is rated for 15 A @ 125 V AC and 3/4 hp.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CARLING TECHNOLOGIES
Series	G
Horsepower	3/4 hp
AC Contact Rating	15 A @ 125 V
Manufacturer Part Number	2GL51-73
Switch Function Configuration	On/On
