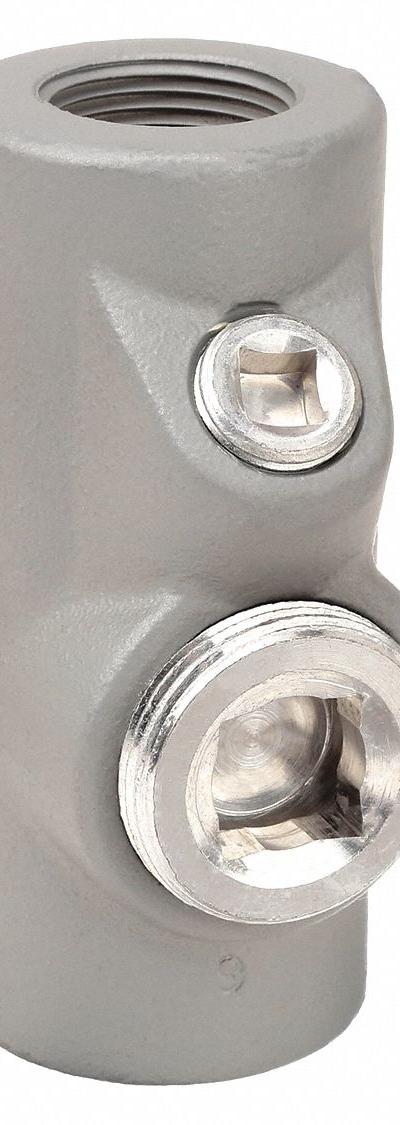

APPLETON ELECTRIC Sealing Fitting - Vertical and Horizontal Sealing Fitting - 40% Fill
APPLETON ELECTRICVertical and Horizontal Sealing Fitting - 40% Fill

APPLETON ELECTRIC Sealing Fitting

The Appleton Electric Sealing Fitting (SKU 10V080, MPN EYSEF100AL) is a vertical and horizontal sealing fitting with a 40% fill rating, constructed from powder-coated aluminum. It features 1 in FNPT x 1 in MNPT…

SKU 3G-OTH-05338

Brand
APPLETON ELECTRIC
Item
Sealing Fitting
Category
Vertical and Horizontal Sealing Fitting - 40% Fill
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Brand
APPLETON ELECTRIC
Finish
Powder Coated
Material
Aluminum
Standards
UL 886
Thread Type
NPT
Thread Gender
Female
Threaded Ends
Male to Female
Connection Type
Threaded
Manufacturer Part Number
EYSEF100AL
Ends - Hazardous Fittings
1 in FNPT x 1 in MNPT
Hazardous Location Rating
Class I, Division 1 and 2, Groups B, C, D
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Appleton Electric Sealing Fitting (SKU 10V080, MPN EYSEF100AL) is a vertical and horizontal sealing fitting with a 40% fill rating, constructed from powder-coated aluminum. It features 1 in FNPT x 1 in MNPT threaded ends with NPT threads and a female-to-male connection. Certified to UL 886, this fitting is rated for Class I, Division 1 and 2, Groups B, C, D hazardous locations.
