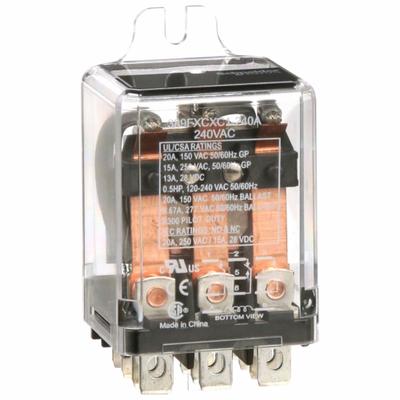

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 20 A Current Rating

The SCHNEIDER Enclosed Power Relay is a surface (side flange) mounted relay from the 389F Power Series. It features an octal base type, quick-connect electrical connection, and a 3PDT contact configuration. The relay…

SKU 3G-OTH-37273

Brand
SCHNEIDER
Item
Enclosed Power Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
389FXCXC1-240A
Series
389F Power Series
Type
3PDT
AC
240V
Base Type
Octal
Current Rating
20 A
Operating Current
15 A at 250V AC (Resistive Load)
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Enclosed Power Relay is a surface (side flange) mounted relay from the 389F Power Series. It features an octal base type, quick-connect electrical connection, and a 3PDT contact configuration. The relay has an operating current of 15 A at 250V AC (resistive load) and a current rating of 20 A at 240V AC.
