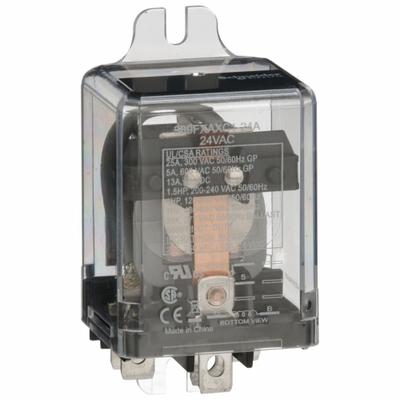

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 25 A Current Rating

The SCHNEIDER Enclosed Power Relay is a surface (side flange) mounted relay from the 389F Power Series, featuring a square base and SPDT configuration. It is rated for 5 A at 600V AC (resistive load) with a 24V AC…

SKU 3G-OTH-36510

Brand
SCHNEIDER
Item
Enclosed Power Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
389FXAXC1-24A
Series
389F Power Series
Type
SPDT
AC
24V
Base Type
Square
Current Rating
25 A
Operating Current
5 A at 600V AC (Resistive Load)
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
