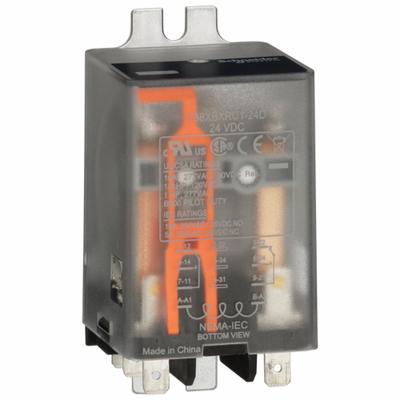

SCHNEIDER Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

SCHNEIDER Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating

The SCHNEIDER Flange Mount Relay is a surface (side flange) mounted relay from the 788R Series, featuring a square base with flat pins and blade terminal electrical connections. It is a DPDT relay rated for 10 A at…

SKU 3G-OTH-37850

Brand
SCHNEIDER
Item
Flange Mount Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
788XBXRC1-24D
Series
788R Series
Type
DPDT
DC
24V
Base Type
Square
Pin Shape
Flat
Current Rating
10 A
Mounting Style
Side Flange
Operating Current
10 A at 277V AC (Resistive Load Conforming to UL)
Electrical Connection
Blade Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Flange Mount Relay is a surface (side flange) mounted relay from the 788R Series, featuring a square base with flat pins and blade terminal electrical connections. It is a DPDT relay rated for 10 A at 277V AC (resistive load conforming to UL) and operates on 24V DC (MPN 788XBXRC1-24D).
