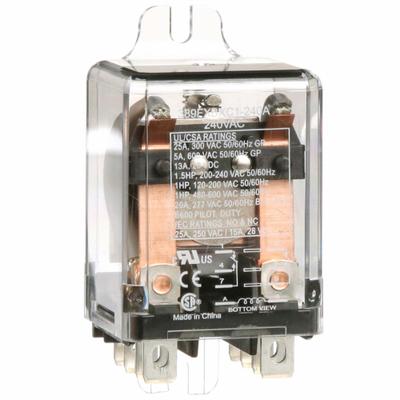

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 25 A Current Rating - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 25 A Current Rating

The SCHNEIDER Enclosed Power Relay is a surface (side flange) mounted relay from the 389F Power Series. It features an octal base, quick-connect electrical connection, and a DPDT contact configuration with a current…

SKU 3G-OTH-37288

Brand
SCHNEIDER
Item
Enclosed Power Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
389FXBXC1-240A
Series
389F Power Series
Type
DPDT
AC
240V
Base Type
Octal
Current Rating
25 A
Operating Current
5 A at 600V AC (Resistive Load)
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Enclosed Power Relay is a surface (side flange) mounted relay from the 389F Power Series. It features an octal base, quick-connect electrical connection, and a DPDT contact configuration with a current rating of 25 A at 240V AC. The relay also supports an operating current of 5 A at 600V AC for resistive loads.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
