Dayton Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1/4 hp, 7,096 cfm - Belt-Drive Panel Exhaust Fans with Drive Package

DaytonBelt-Drive Panel Exhaust Fans with Drive Package

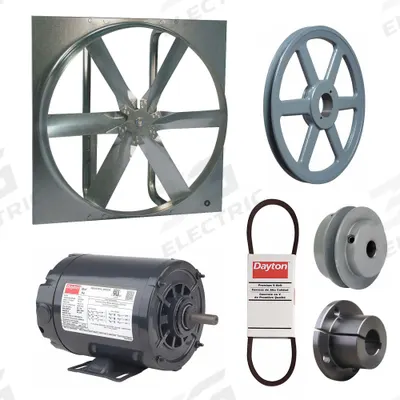

Dayton Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1/4 hp, 7,096 cfm

The Dayton 7AD32 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 30-inch blade, 1/4 hp motor, and 7,096 cfm airflow. It operates on 230/460V AC, 3-phase power with a single-speed…

SKU 3G-OTH-81750

Brand

Dayton

Item

Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1/4 hp, 7,096 cfm

Category

Belt-Drive Panel Exhaust Fans with Drive Package

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

Dayton

Manufacturer Part Number

7AD32

Type

1/4 hp, 7,096 cfm, 3 ph

AC

230/460V

Blade

30 in

Assembled

Unassembled

Guard Type

None

Motor Type

3-Phase

Frame Finish

Zinc Plated

Frame Material

Steel

Motor Enclosure

Open Dripproof

Enclosure Design

Open Dripproof Motor

Motor Insulation

Class B

Number of Speeds

1

Nameplate Voltage

230/460V AC

Guard Type Subheads

Without Intake Guards

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Dayton Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7AD32 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 30-inch blade, 1/4 hp motor, and 7,096 cfm airflow. It operates on 230/460V AC, 3-phase power with a single-speed, open dripproof motor (Class B insulation). The fan has a zinc-plated steel frame and is supplied without intake guards.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
