Dayton 3G-OTH-81750 — Technical Specifications

Name: Dayton 3G-OTH-81750 Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1/4 hp, 7,096 cfm, 230/460V AC, 3 ph (MPN 7AD32). Key specifications — Frame Finish: Zinc Plated; Assembled: Unassembled; Brand: DAYTON; Nameplate Voltage: 230/460V AC; Frame Material: Steel; Guard Type: None; Motor Type: 3-Phase; Motor Insulation: Class B.
Brand: Dayton

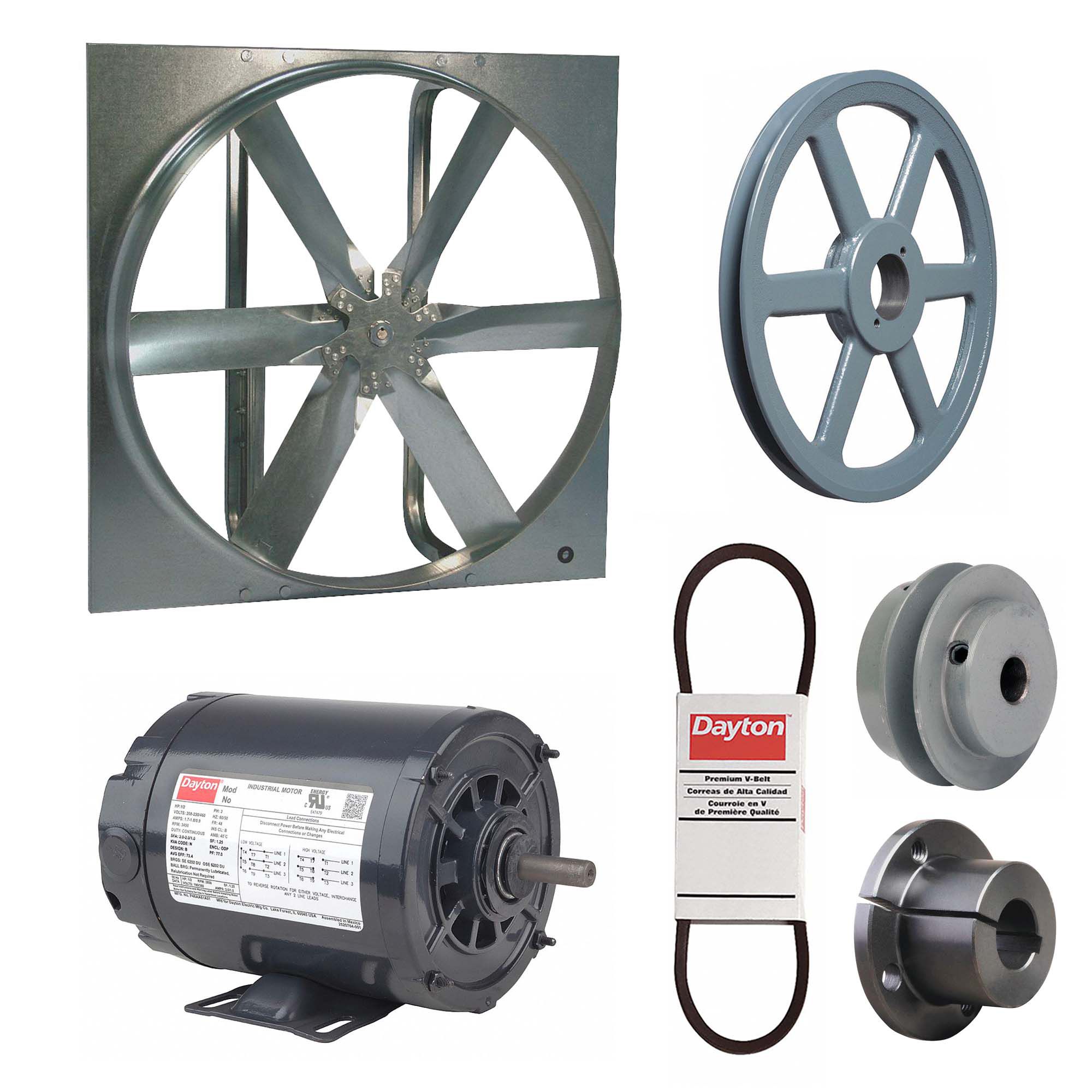

The Dayton 7AD32 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 30-inch blade, 1/4 hp motor, and 7,096 cfm airflow. It operates on 230/460V AC, 3-phase power with a single-speed, open dripproof motor (Class B insulation). The fan has a zinc-plated steel frame and is supplied without intake guards.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	1/4 hp, 7,096 cfm, 3 ph
Blade	30 in
Brand	DAYTON
Assembled	Unassembled
Guard Type	None
Motor Type	3-Phase
Frame Finish	Zinc Plated
Frame Material	Steel
Motor Enclosure	Open Dripproof
Enclosure Design	Open Dripproof Motor
Motor Insulation	Class B
Number Of Speeds	1
Nameplate Voltage	230/460V AC
Guard Type Subheads	Without Intake Guards
Manufacturer Part Number	7AD32
