Dayton Exhaust Fan with Drive Package: Belt Drive, 20 in Blade, 3/4 hp, 6,348 cfm - Belt-Drive Panel Exhaust Fans with Drive Package

DaytonBelt-Drive Panel Exhaust Fans with Drive Package

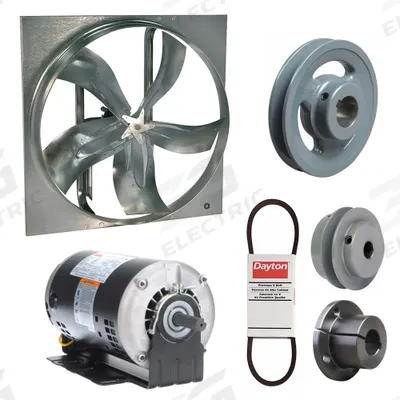

Dayton Exhaust Fan with Drive Package: Belt Drive, 20 in Blade, 3/4 hp, 6,348 cfm

The Dayton 7AD64 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 20-inch blade, 3/4 hp motor, and 6,348 cfm airflow. It operates on 115/208-230V AC, single-phase power, with an open…

SKU 3G-OTH-81554

Brand

Dayton

Item

Exhaust Fan with Drive Package: Belt Drive, 20 in Blade, 3/4 hp, 6,348 cfm

Category

Belt-Drive Panel Exhaust Fans with Drive Package

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

Dayton

Manufacturer Part Number

7AD64

Type

3/4 hp, 6,348 cfm, 1 ph

AC

115/208-230V

Blade

20 in

Assembled

Unassembled

Guard Type

None

Frame Finish

Zinc Plated

Frame Material

Steel

Motor Enclosure

Open Dripproof

Enclosure Design

Open Dripproof Motor

Motor Insulation

Class F

Number of Speeds

1

Nameplate Voltage

115/208-230V AC

Guard Type Subheads

Without Intake Guards

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Dayton Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7AD64 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 20-inch blade, 3/4 hp motor, and 6,348 cfm airflow. It operates on 115/208-230V AC, single-phase power, with an open dripproof motor enclosure and Class F insulation. The steel frame has a zinc-plated finish, and the unit is supplied without intake guards.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
