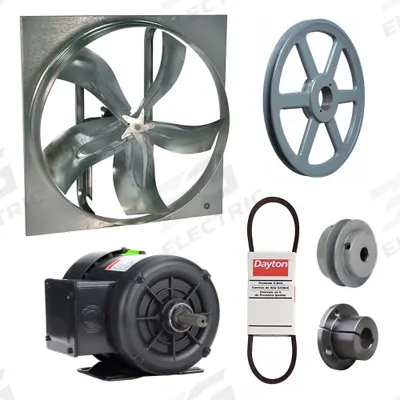

Dayton Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1/2 hp, 9,829 cfm - Belt-Drive Panel Exhaust Fans with Drive Package
DaytonBelt-Drive Panel Exhaust Fans with Drive Package

Dayton Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1/2 hp, 9,829 cfm

The Dayton 7M7Y7 is an unassembled belt-drive panel exhaust fan with a 30-inch blade, 1/2 hp motor, and 9,829 cfm airflow. It features a 3-phase, 208-230/460V AC motor with a totally enclosed fan-cooled enclosure…

SKU 3G-OTH-81314

Brand
Dayton
Item
Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 1/2 hp, 9,829 cfm
Category
Belt-Drive Panel Exhaust Fans with Drive Package
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7M7Y7
Type
1/2 hp, 9,829 cfm, 3 ph
AC
208-230/460V
Blade
30 in
Assembled
Unassembled
Guard Type
None
Motor Type
3-Phase
Frame Finish
Zinc Plated
Frame Material
Steel
Motor Enclosure
Totally Enclosed Fan Cooled
Enclosure Design
Totally Enclosed Motor
Motor Insulation
Class B
Number of Speeds
1
Nameplate Voltage
208-230/460V AC
Guard Type Subheads
Without Intake Guards
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7M7Y7 is an unassembled belt-drive panel exhaust fan with a 30-inch blade, 1/2 hp motor, and 9,829 cfm airflow. It features a 3-phase, 208-230/460V AC motor with a totally enclosed fan-cooled enclosure, Class B insulation, and a single speed. The frame is zinc-plated steel, and the unit is supplied without intake guards.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the Dayton 7M7Y7 exhaust fan used for?

The Dayton 7M7Y7 belt-drive panel exhaust fan is used for general ventilation in industrial facilities, warehouses, and commercial buildings. It moves 9,829 cfm of air with a 30-inch blade and a 1/2 hp, 3-phase motor, making it suitable for exhausting heat, fumes, or stale air from large open areas.

What are the specifications of the Dayton 7M7Y7 exhaust fan?

The Dayton 7M7Y7 is an unassembled belt-drive panel exhaust fan with a 30-inch blade, 1/2 hp motor, and 9,829 cfm airflow. It operates on 208-230/460V AC, 3-phase power, with a totally enclosed fan-cooled motor, Class B insulation, and a single speed. The frame is zinc-plated steel, and it is supplied without intake guards.

Where to buy the Dayton 7M7Y7 exhaust fan worldwide?

3G Electric supplies the Dayton 7M7Y7 belt-drive exhaust fan to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this unassembled fan with a 30-inch blade and 9,829 cfm capacity.

How to install the Dayton 7M7Y7 unassembled exhaust fan?

Installation of the Dayton 7M7Y7 requires assembling the belt-drive package, mounting the fan panel securely to a wall or roof opening, and connecting the 3-phase motor to a 208-230/460V AC power supply. Ensure proper belt tension and alignment per the manufacturer's manual. Use a qualified electrician for wiring and follow local codes.

Used in

Common applications for Dayton
HVAC ventilation — DAYTON centrifugal upblast roof exhaust fans (SKU 7M7U3) for kitchen exhaust systems
Mechanical power transmission — DAYTON HTD timing pulleys (SKU 404GV0) for conveyor belt drives
Process water handling — DAYTON self-priming centrifugal pumps (SKU 2ZXT4) for dewatering or transfer
Roofing and building services — DAYTON fixed ventilated roof curbs (SKU 4HX59) for filtered supply fan installations
Material handling — DAYTON latch assemblies (SKU 2KEN4) for electric chain hoist hook safety
Industrial air movement — DAYTON downblast roof exhaust fans (SKU 3HFL9) for clean air exhaust in manufacturing plants

Dayton Products

3G Electric supplies Dayton belt-drive panel exhaust fans with drive package. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
