SCHNEIDER Open Power Relay: Surface Mounted, 30 A Current Rating, 120V AC, DPST-NO - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

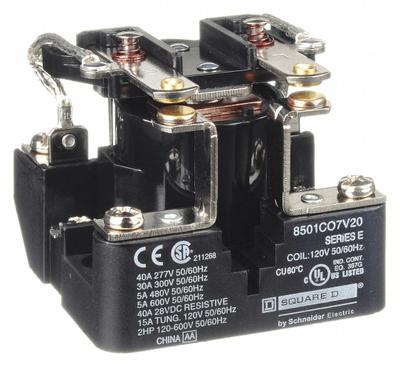

SCHNEIDER Open Power Relay: Surface Mounted, 30 A Current Rating, 120V AC, DPST-NO

The SCHNEIDER Open Power Relay is a surface-mounted relay from the 8501C Series, featuring a square base type and through-panel mounting style. It has a 30 A current rating at 120V AC, DPST-NO contact configuration…

SKU 3G-OTH-37083

Brand
SCHNEIDER
Item
Open Power Relay: Surface Mounted, 30 A Current Rating, 120V AC, DPST-NO
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
8501CO7V20
Series
8501C Series
Type
DPST-NO
AC
120V
Base Type
Square
Current Rating
30 A
Mounting Style
Through Panel
Pins/Terminals
6
Electrical Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Open Power Relay is a surface-mounted relay from the 8501C Series, featuring a square base type and through-panel mounting style. It has a 30 A current rating at 120V AC, DPST-NO contact configuration, and 6 pins/terminals with screw clamp electrical connection. This relay is identified by manufacturer part number 8501CO7V20.
