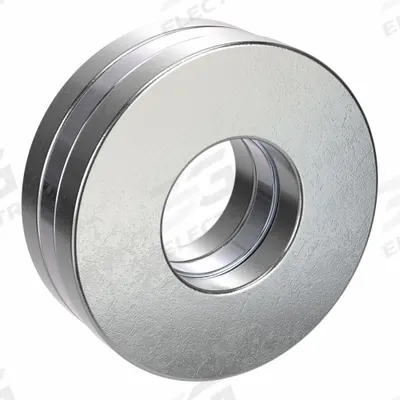

EZO Ball Thrust Bearing: F9-20M, 9 mm Bore Dia, 20 mm Outside Dia, 7 mm Overall Wd
The EZO F9-20M is a separable grooved-race ball thrust bearing from the FM Series, featuring a 9 mm bore diameter, 20 mm outside diameter, and 7 mm overall width. Constructed with SUJ2 steel balls, this metric…
SKU 3G-OTH-108548
Need installation or engineering help?
Ask a question
Product Description
The EZO F9-20M is a separable grooved-race ball thrust bearing from the FM Series, featuring a 9 mm bore diameter, 20 mm outside diameter, and 7 mm overall width. Constructed with SUJ2 steel balls, this metric bearing achieves a maximum speed of 12,000 RPM with oil lubrication. It is designed for applications requiring axial load support in a separable configuration.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the EZO F9-20M ball thrust bearing used for?
The EZO F9-20M separable grooved-race ball thrust bearing supports axial loads in rotating machinery. Common applications include machine tool spindles, automotive transmissions, and industrial gearboxes where precise axial positioning and high-speed operation up to 12,000 RPM with oil lubrication are required.
What are the specifications of the EZO F9-20M bearing?
The EZO F9-20M is a metric separable ball thrust bearing with a 9 mm bore, 20 mm outside diameter, and 7 mm overall width. It features SUJ2 steel balls, belongs to the FM Series, and achieves a maximum speed of 12,000 RPM with oil lubrication. The bearing industry number is F9-20M.
Where to buy the EZO F9-20M bearing worldwide?
3G Electric supplies the EZO F9-20M bearing worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this bearing to any country.
How to select the correct EZO F9-20M thrust bearing for an application?
To select the EZO F9-20M, verify that your application requires axial load support and a separable bearing design. Confirm the 9 mm shaft diameter, 20 mm housing bore, and 7 mm width fit your assembly. Ensure operating speed does not exceed 12,000 RPM with oil lubrication. Consult EZO's FM Series documentation for load ratings.
