Ezo 3G-OTH-108548 — Technical Specifications

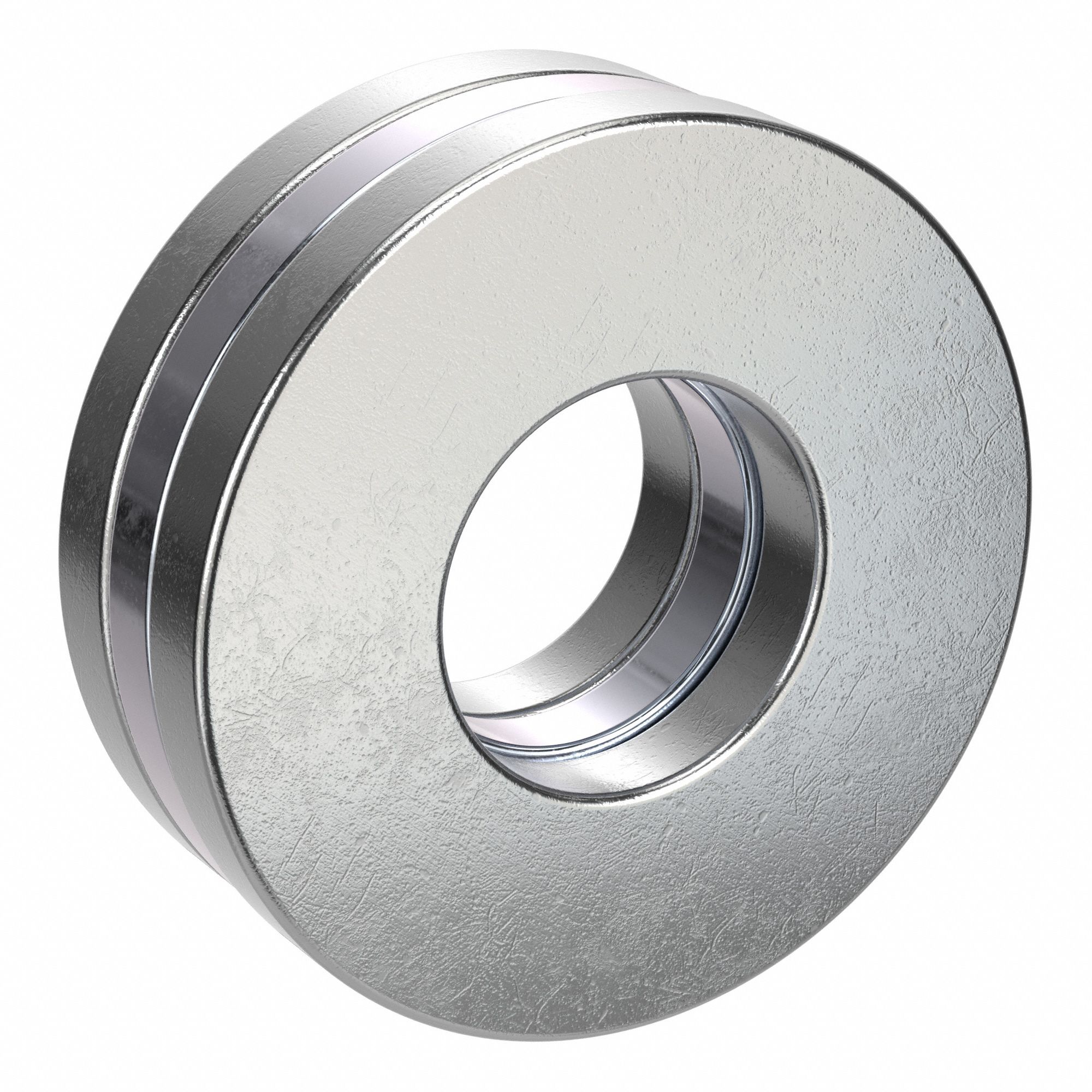

The EZO F9-20M is a separable grooved-race ball thrust bearing from the FM Series, featuring a 9 mm bore diameter, 20 mm outside diameter, and 7 mm overall width. Constructed with SUJ2 steel balls, this metric bearing achieves a maximum speed of 12,000 RPM with oil lubrication. It is designed for applications requiring axial load support in a separable configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Grooved, Steel |
| Brand | EZO |
| Bore Dia | 9 mm |
| Overall Wd | 7 mm |
| Outside Dia | 20 mm |
| Maximum Speed | 12,000 RPM Oil |
| Bearing Series | FM Series |
| Ball Material Grade | SUJ2 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Metric |
| Bearing Industry Number | F9-20M |
| Manufacturer Part Number | F9-20M |
