EATON Lighted Rocker Switch: 2 Positions, SPST, Off/On - General Purpose Rocker Switches
EATONGeneral Purpose Rocker Switches

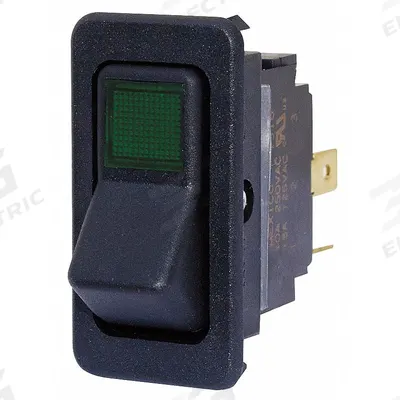

EATON Lighted Rocker Switch: 2 Positions, SPST, Off/On

The EATON Lighted Rocker Switch (MPN 8005K23N113V32) is a general purpose rocker switch from the Series 8005, featuring a 2-position SPST Off/On configuration with green illumination. It is rated for AC contact at 10…

SKU 3G-OTH-34608

Brand
EATON
Item
Lighted Rocker Switch: 2 Positions, SPST, Off/On
Category
General Purpose Rocker Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
8005K23N113V32
Series
8005
Horsepower
3/4 hp @ 250 V
Switch Color
Black
Includes Lens
Lens Included
Displayed Brand
EATON
AC Contact Rating
10 A @ 250 V
DC Contact Rating
15 A @ 28 V
Includes Lamp Module
Lamp Module Included
Operator Illumination
Illuminated
Terminal Connection Type
1/4 in Spade
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Lighted Rocker Switch (MPN 8005K23N113V32) is a general purpose rocker switch from the Series 8005, featuring a 2-position SPST Off/On configuration with green illumination. It is rated for AC contact at 10 A @ 250 V and DC contact at 15 A @ 28 V, with a horsepower rating of 3/4 hp @ 250 V. The switch has a black body, includes a lamp module and lens, and terminates with 1/4 in spade connectors.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the EATON 8005K23N113V32 lighted rocker switch used for?

The EATON 8005K23N113V32 is a general purpose SPST rocker switch for industrial control panels, machinery, and equipment requiring reliable on/off control with green illumination. It suits AC circuits up to 10 A @ 250 V and DC circuits up to 15 A @ 28 V, including motor loads up to 3/4 hp @ 250 V.

What are the specifications of the EATON 8005K23N113V32 rocker switch?

This EATON Series 8005 rocker switch is SPST Off/On with green illumination. AC contact rating is 10 A @ 250 V; DC contact rating is 15 A @ 28 V; horsepower rating is 3/4 hp @ 250 V. It includes a lamp module and lens, has a black body, and terminates with 1/4 in spade connectors.

Where to buy the EATON 8005K23N113V32 rocker switch worldwide?

3G Electric supplies the EATON 8005K23N113V32 lighted rocker switch to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this general purpose switch.

How to install the EATON 8005K23N113V32 lighted rocker switch?

Install the EATON 8005K23N113V32 by connecting the 1/4 in spade terminals to your circuit wiring, ensuring power is off. Mount the switch into a standard panel cutout, secure it, and verify the green illumination functions. Follow NEC guidelines and consult the manufacturer's datasheet for torque and clearance requirements.
