EATON Lighted Rocker Switch: 2 Positions, SPST, Off/On - General Purpose Rocker Switches
EATONGeneral Purpose Rocker Switches

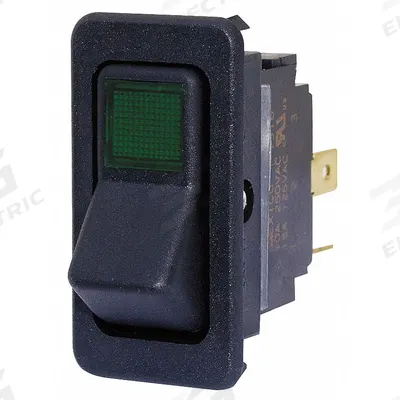

EATON Lighted Rocker Switch: 2 Positions, SPST, Off/On

The EATON Lighted Rocker Switch is a general purpose rocker switch from the Series 8005, featuring a 2-position SPST Off/On configuration with green illumination. It is rated for AC contact at 10 A @ 250 V and DC…

SKU 3G-OTH-34591

Brand
EATON
Item
Lighted Rocker Switch: 2 Positions, SPST, Off/On
Category
General Purpose Rocker Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
8005K25N113V32
Series
8005
Horsepower
3/4 hp @ 250 V
Switch Color
Black
Includes Lens
Lens Included
Displayed Brand
EATON
AC Contact Rating
10 A @ 250 V
DC Contact Rating
15 A @ 28 V
Includes Lamp Module
Lamp Module Included
Operator Illumination
Illuminated
Terminal Connection Type
Screw Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Lighted Rocker Switch is a general purpose rocker switch from the Series 8005, featuring a 2-position SPST Off/On configuration with green illumination. It is rated for AC contact at 10 A @ 250 V and DC contact at 15 A @ 28 V, with a horsepower rating of 3/4 hp @ 250 V. The switch includes a lamp module and lens, has a black color, and uses screw terminals for connection.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON general purpose rocker switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
