Eaton 3G-OTH-34608 — Technical Specifications

Name: Eaton 3G-OTH-34608 EATON Lighted Rocker Switch: 2 Positions, SPST, Off/On, Green (MPN 8005K23N113V32). Key specifications — AC Contact Rating: 10 A @ 250 V; DC Contact Rating: 15 A @ 28 V; Horsepower: 3/4 hp @ 250 V; Operator Illumination: Illuminated; Switch Color: Black; Terminal Connection Type: 1/4 in Spade; Includes Lamp Module: Lamp Module Included; Includes Lens: Lens Included.
Brand: Eaton

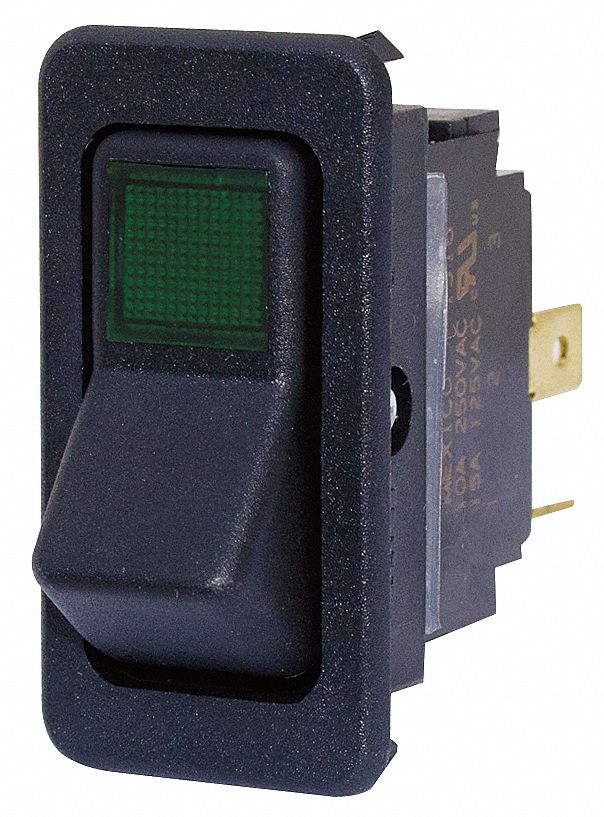

The EATON Lighted Rocker Switch (MPN 8005K23N113V32) is a general purpose rocker switch from the Series 8005, featuring a 2-position SPST Off/On configuration with green illumination. It is rated for AC contact at 10 A @ 250 V and DC contact at 15 A @ 28 V, with a horsepower rating of 3/4 hp @ 250 V. The switch has a black body, includes a lamp module and lens, and terminates with 1/4 in spade connectors.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	EATON
Series	8005
Horsepower	3/4 hp @ 250 V
Switch Color	Black
Includes Lens	Lens Included
Displayed Brand	EATON
AC Contact Rating	10 A @ 250 V
DC Contact Rating	15 A @ 28 V
Includes Lamp Module	Lamp Module Included
Operator Illumination	Illuminated
Manufacturer Part Number	8005K23N113V32
Terminal Connection Type	1/4 in Spade
