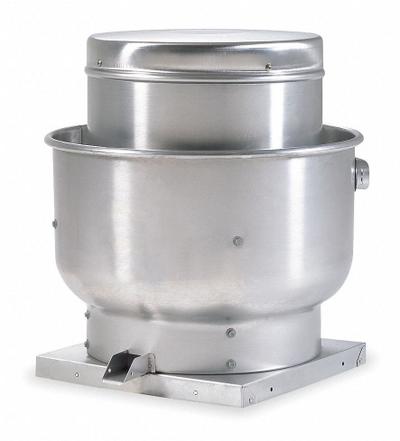

Dayton Upblast Ventilator: Belt Drive, Includes Drive Pack, 24 1/2 in Wheel, 8,431 cfm - Kitchen Air Belt-Drive Fans with Drive
DaytonKitchen Air Belt-Drive Fans with Drive

Dayton Upblast Ventilator: Belt Drive, Includes Drive Pack, 24 1/2 in Wheel, 8,431 cfm

The Dayton Upblast Ventilator: Belt Drive (SKU 800W87) is a kitchen air belt-drive fan with drive, assembled with a square base and an open dripproof motor. It includes a drive package, operates at 1 speed, and is…

SKU 3G-OTH-83551

Brand
Dayton
Item
Upblast Ventilator: Belt Drive, Includes Drive Pack, 24 1/2 in Wheel, 8,431 cfm
Category
Kitchen Air Belt-Drive Fans with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
800W87
Type
Includes Drive Pack, 8,431 cfm, ODP, 2 hp, 3-ph
Wheel
24 1/2 in
Assembly
Assembled
Base Shape
Square
Drive Package
Includes Drive Package
Motor Enclosure
Open Dripproof
Motor Efficiency
Standard Motor
Number of Speeds
1
Nameplate Voltage
208 to 230/460V AC
High-Efficiency Motor
No
Includes Drive Package
Yes
Exhaust Airflow @ 0.000 in SP - Range
5,000 to 10,000 cfm
Exhaust Airflow @ 0.500 in SP - Range
5,000 to 10,000 cfm
For High-Static Pressure Applications
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton Upblast Ventilator: Belt Drive (SKU 800W87) is a kitchen air belt-drive fan with drive, assembled with a square base and an open dripproof motor. It includes a drive package, operates at 1 speed, and is rated for 208 to 230/460V AC with an exhaust airflow range of 5,000 to 10,000 cfm at both 0.000 in SP and 0.500 in SP.
