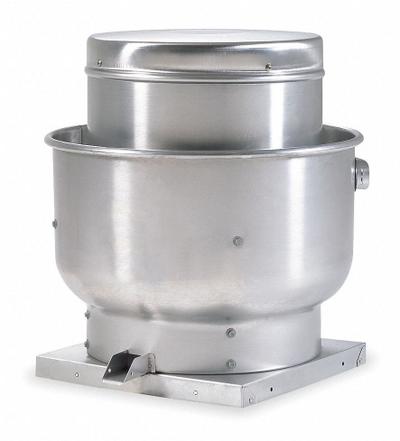

Dayton Upblast Ventilator: Belt Drive, Includes Drive Pack, 18 1/2 in Wheel, 4,061 cfm - Kitchen Air Belt-Drive Fans with Drive
DaytonKitchen Air Belt-Drive Fans with Drive

Dayton Upblast Ventilator: Belt Drive, Includes Drive Pack, 18 1/2 in Wheel, 4,061 cfm

The Dayton Upblast Ventilator is a belt-drive kitchen air fan (SKU 800W78) supplied assembled with a drive package. It features an 18 1/2 in wheel, delivers 4,061 cfm, and is powered by a 3/4 hp, 1-phase open…

SKU 3G-OTH-80780

Brand
Dayton
Item
Upblast Ventilator: Belt Drive, Includes Drive Pack, 18 1/2 in Wheel, 4,061 cfm
Category
Kitchen Air Belt-Drive Fans with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
800W78
Type
Includes Drive Pack, 4,061 cfm, ODP, 3/4 hp, 1-ph
Wheel
18 1/2 in
Assembly
Assembled
Base Shape
Square
Drive Package
Includes Drive Package
Motor Enclosure
Open Dripproof
Motor Efficiency
Standard Motor
Number of Speeds
1
Nameplate Voltage
115/208 to 230V AC
High-Efficiency Motor
No
Includes Drive Package
Yes
Exhaust Airflow @ 0.000 in SP - Range
2,000 to 4,999 cfm
Exhaust Airflow @ 0.500 in SP - Range
2,000 to 4,999 cfm
For High-Static Pressure Applications
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton Upblast Ventilator is a belt-drive kitchen air fan (SKU 800W78) supplied assembled with a drive package. It features an 18 1/2 in wheel, delivers 4,061 cfm, and is powered by a 3/4 hp, 1-phase open dripproof motor with a nameplate voltage of 115/208 to 230V AC. The unit has a square base, one speed, and is not designed for high-static-pressure applications.
