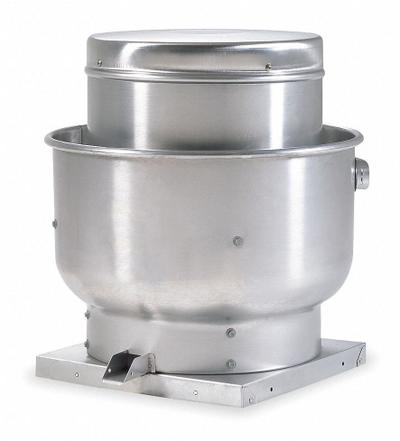

Dayton Upblast Ventilator: Belt Drive, Includes Drive Pack, 21 1/4 in Wheel, 6,187 cfm - Kitchen Air Belt-Drive Fans with Drive
DaytonKitchen Air Belt-Drive Fans with Drive

Dayton Upblast Ventilator: Belt Drive, Includes Drive Pack, 21 1/4 in Wheel, 6,187 cfm

The Dayton Upblast Ventilator is a belt-drive kitchen air fan (SKU 800W82) supplied assembled with a drive package. It features a square base, an open dripproof motor enclosure, and a nameplate voltage of 115/208 to…

SKU 3G-OTH-83716

Brand
Dayton
Item
Upblast Ventilator: Belt Drive, Includes Drive Pack, 21 1/4 in Wheel, 6,187 cfm
Category
Kitchen Air Belt-Drive Fans with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
800W82
Type
Includes Drive Pack, 6,187 cfm, ODP, 1 1/2 hp, 1-ph
Wheel
21 1/4 in
Assembly
Assembled
Base Shape
Square
Drive Package
Includes Drive Package
Motor Enclosure
Open Dripproof
Motor Efficiency
Standard Motor
Number of Speeds
1
Nameplate Voltage
115/208 to 230V
High-Efficiency Motor
No
Includes Drive Package
Yes
Exhaust Airflow @ 0.000 in SP - Range
5,000 to 10,000 cfm
Exhaust Airflow @ 0.500 in SP - Range
5,000 to 10,000 cfm
For High-Static Pressure Applications
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton Upblast Ventilator is a belt-drive kitchen air fan (SKU 800W82) supplied assembled with a drive package. It features a square base, an open dripproof motor enclosure, and a nameplate voltage of 115/208 to 230V. The unit delivers exhaust airflow ranges of 5,000 to 10,000 cfm at both 0.000 in SP and 0.500 in SP, with a 1-speed standard-efficiency motor.
