Dayton Brake: C-Face Magnetic Disc, 115/208-230V AC - Washdown Brakes
DaytonWashdown Brakes

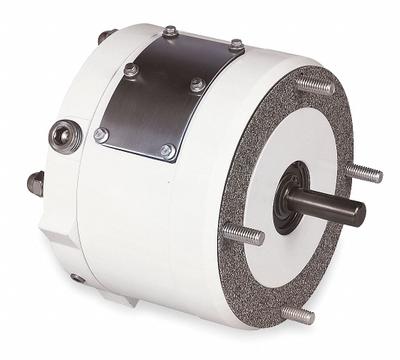

Dayton Brake: C-Face Magnetic Disc, 115/208-230V AC

The DAYTON Brake: C-Face Magnetic Disc is a washdown brake with a totally enclosed enclosure type. It is rated for 3 hp @ 3450 RPM and mounts between motor and reducer, designed for use with a 140TC NEMA motor frame…

SKU 3G-OTH-112404

Brand
Dayton
Item
Brake: C-Face Magnetic Disc, 115/208-230V AC
Category
Washdown Brakes
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1L389
Type
110/208-220V AC @ 50 Hz/115/208-230V AC @ 60 Hz
AC
115/208-230V
For Use With
When Wired per Instructions
Enclosure Type
Totally Enclosed
Horsepower @ RPM
3 hp @ 3450 RPM
Clutch/Brake Type
C-Face Magnetic Disc
Mounting Location
Between Motor and Reducer
Motor Frame Designation
140TC NEMA
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Brake: C-Face Magnetic Disc is a washdown brake with a totally enclosed enclosure type. It is rated for 3 hp @ 3450 RPM and mounts between motor and reducer, designed for use with a 140TC NEMA motor frame. The unit operates on 115/208-230V AC (60 Hz) or 110/208-220V AC (50 Hz).
