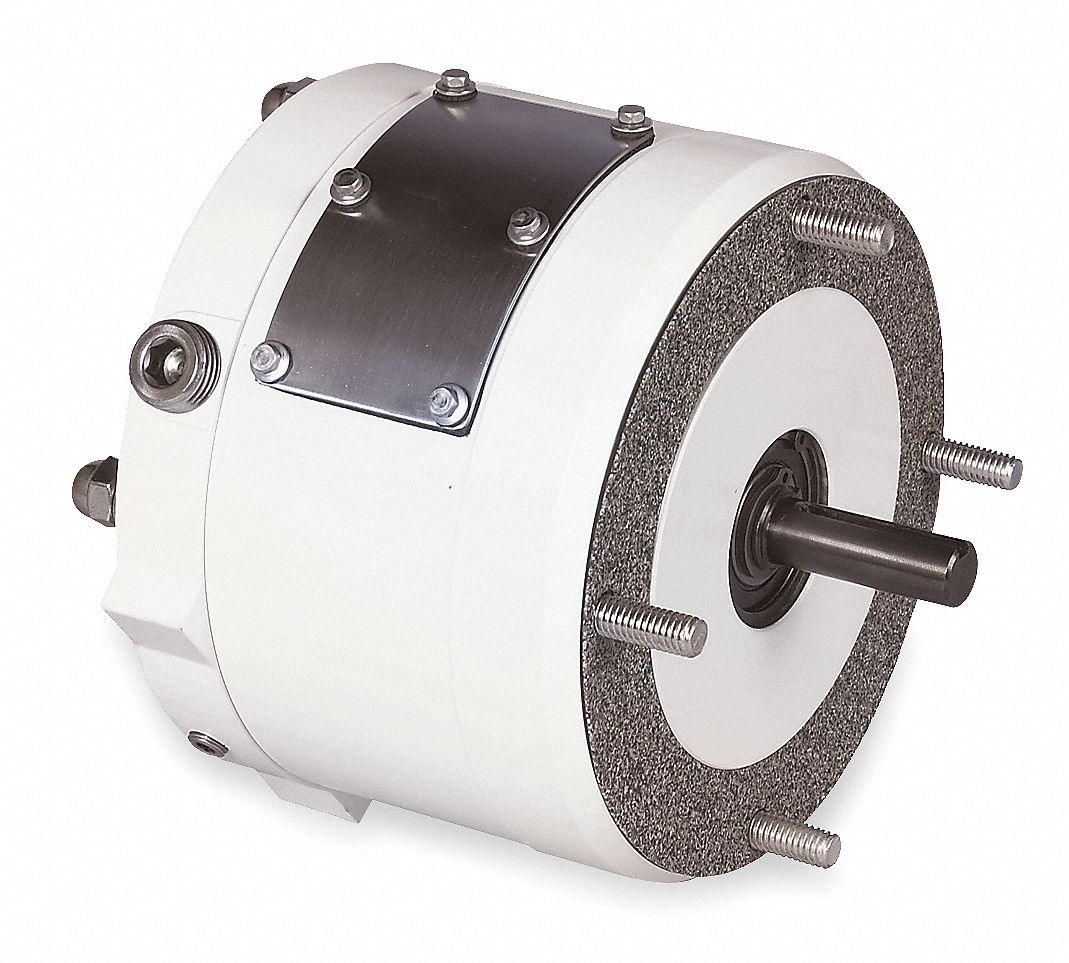

Dayton 3G-OTH-112404 — Technical Specifications
The DAYTON Brake: C-Face Magnetic Disc is a washdown brake with a totally enclosed enclosure type. It is rated for 3 hp @ 3450 RPM and mounts between motor and reducer, designed for use with a 140TC NEMA motor frame. The unit operates on 115/208-230V AC (60 Hz) or 110/208-220V AC (50 Hz).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115/208-230V |
| Type | 110/208-220V AC @ 50 Hz/115/208-230V AC @ 60 Hz |
| Brand | DAYTON |
| For Use With | When Wired per Instructions |
| Enclosure Type | Totally Enclosed |
| Horsepower @ RPM | 3 hp @ 3450 RPM |
| Clutch/Brake Type | C-Face Magnetic Disc |
| Mounting Location | Between Motor and Reducer |
| Motor Frame Designation | 140TC NEMA |
| Manufacturer Part Number | 1L389 |
