Dayton Brake: C-Face Magnetic Disc, 115/208-230V AC - Washdown Brakes
DaytonWashdown Brakes

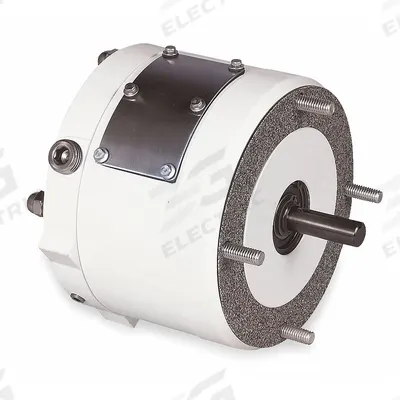

Dayton Brake: C-Face Magnetic Disc, 115/208-230V AC

The DAYTON C-Face Magnetic Disc Brake (SKU 1L388) is a washdown brake designed for use with single-phase motors. It features a totally enclosed enclosure type and is rated for 1 hp @ 1725 RPM. This C-Face magnetic…

SKU 3G-OTH-112486

Brand
Dayton
Item
Brake: C-Face Magnetic Disc, 115/208-230V AC
Category
Washdown Brakes
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1L388
Type
110/208-220V AC @ 50 Hz/115/208-230V AC @ 60 Hz
AC
115/208-230V
For Use With
Single Phase Motors
Enclosure Type
Totally Enclosed
Horsepower @ RPM
1 hp @ 1725 RPM
Clutch/Brake Type
C-Face Magnetic Disc
Mounting Location
NEMA C Face Motor
Motor Frame Designation
56C NEMA
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON C-Face Magnetic Disc Brake (SKU 1L388) is a washdown brake designed for use with single-phase motors. It features a totally enclosed enclosure type and is rated for 1 hp @ 1725 RPM. This C-Face magnetic disc brake mounts on a NEMA C Face motor with a 56C NEMA motor frame designation and operates at 115/208-230V AC (60 Hz) or 110/208-220V AC (50 Hz).

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the DAYTON C-Face Magnetic Disc Brake used for?

The DAYTON C-Face Magnetic Disc Brake (1L388) is a washdown brake designed to stop or hold single-phase motors. It is commonly used in food processing, washdown environments, and other industrial applications requiring a totally enclosed brake that mounts directly on a NEMA C Face motor.

What are the specifications of the DAYTON 1L388 brake?

The DAYTON 1L388 is a C-Face magnetic disc brake rated for 1 hp @ 1725 RPM. It operates at 115/208-230V AC (60 Hz) or 110/208-220V AC (50 Hz), features a totally enclosed enclosure, and mounts on a NEMA 56C C Face motor. It is designed for single-phase motors.

Where to buy the DAYTON 1L388 brake worldwide?

3G Electric supplies the DAYTON 1L388 C-Face Magnetic Disc Brake worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us to source this brake for your application.

How to install the DAYTON C-Face Magnetic Disc Brake?

Install the DAYTON 1L388 brake by mounting it directly onto a NEMA 56C C Face motor shaft. Ensure the motor is single-phase and the voltage matches your supply (115/208-230V AC 60 Hz or 110/208-220V AC 50 Hz). Follow standard industrial brake installation practices and torque specifications.
