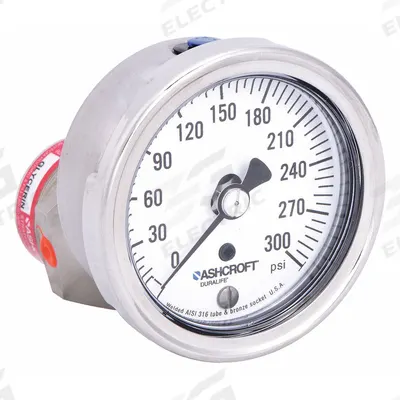

ASHCROFT Pressure Gauge with Diaphragm Seal: 0 psi to 300 psi, 1009/310-315, 2 1/2 in Dial
The ASHCROFT Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, covering 0 psi to 300 psi. It features a 2 1/2 in dial, ±1.50% accuracy, a 304 stainless steel case…
SKU 3G-OTH-174921
Need installation or engineering help?
Ask a question
Product Description
The ASHCROFT Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, covering 0 psi to 300 psi. It features a 2 1/2 in dial, ±1.50% accuracy, a 304 stainless steel case, and a 316L stainless steel seal lower housing, with glycerin seal fill liquid and no gauge case liquid.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the ASHCROFT pressure gauge with diaphragm seal used for?
This ASHCROFT dial pressure gauge with a 316 SS female-threaded mini-seal is used for measuring pressure in industrial processes where the media must be isolated from the gauge internals. It is suitable for applications requiring ±1.50% accuracy and a 2 1/2 in dial, such as in chemical, petrochemical, and water treatment systems.
What are the specifications of the ASHCROFT 251009AW02B/310SSLXCG300?
The ASHCROFT pressure gauge has a 0 psi to 300 psi range, 2 1/2 in dial, ±1.50% accuracy, 304 stainless steel case, 316L stainless steel seal lower housing, and glycerin seal fill liquid. The gauge case liquid is none. The model is 1009/310-315 with MPN 251009AW02B/310SSLXCG300.
Where to buy the ASHCROFT pressure gauge with diaphragm seal worldwide?
3G Electric supplies and delivers the ASHCROFT pressure gauge with diaphragm seal worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to ensure the gauge reaches your facility. Contact us for availability and lead time on this ASHCROFT model.
How to select a pressure gauge with diaphragm seal?
Select a pressure gauge with diaphragm seal by matching the pressure range (e.g., 0 psi to 300 psi), dial size (e.g., 2 1/2 in), accuracy (e.g., ±1.50%), and wetted materials (e.g., 316L SS) to your process media and temperature. Ensure the seal fill liquid (e.g., glycerin) is compatible with the application. 3G Electric can help source the right ASHCROFT configuration.
