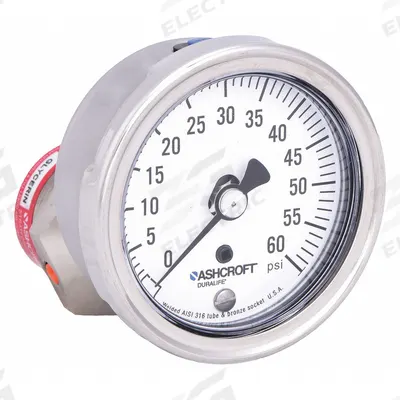

ASHCROFT Pressure Gauge with Diaphragm Seal: 0 psi to 60 psi, 1009/310-315, 2 1/2 in Dial
The ASHCROFT Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, covering 0 psi to 60 psi. It features a 2 1/2 in dial, ±1.50% accuracy, a 304 stainless steel case…
SKU 3G-OTH-174898
Need installation or engineering help?
Ask a question
Product Description
The ASHCROFT Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, covering 0 psi to 60 psi. It features a 2 1/2 in dial, ±1.50% accuracy, a 304 stainless steel case, and a 316L stainless steel seal lower housing, with glycerin seal fill liquid and no gauge case liquid.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the ASHCROFT Pressure Gauge with Diaphragm Seal used for?
This ASHCROFT dial pressure gauge with diaphragm seal is used for measuring pressure in industrial processes where the process fluid is corrosive, viscous, or contains solids. The 316L stainless steel mini-seal isolates the gauge from the process fluid, making it suitable for chemical, petrochemical, and pharmaceutical applications.
What are the specifications of the ASHCROFT Pressure Gauge with Diaphragm Seal?
This ASHCROFT gauge has a range of 0 psi to 60 psi, a 2 1/2 in dial, and ±1.50% accuracy. It features a 304 stainless steel case, a 316L stainless steel seal lower housing, and glycerin as the seal fill liquid. The gauge case has no liquid fill. The manufacturer part number is 251009AW02B/310SSLXCG60.
Where to buy the ASHCROFT Pressure Gauge with Diaphragm Seal worldwide?
You can source the ASHCROFT Pressure Gauge with Diaphragm Seal worldwide through 3G Electric. As a global industrial equipment distributor, 3G Electric handles full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.
How to select the right ASHCROFT Pressure Gauge with Diaphragm Seal?
To select the correct ASHCROFT gauge, verify the pressure range (0 psi to 60 psi), dial size (2 1/2 in), and accuracy (±1.50%). Ensure the seal fill liquid (glycerin) and materials (304 SS case, 316L SS seal) are compatible with your process fluid and temperature. Confirm the process connection thread size matches your piping.
