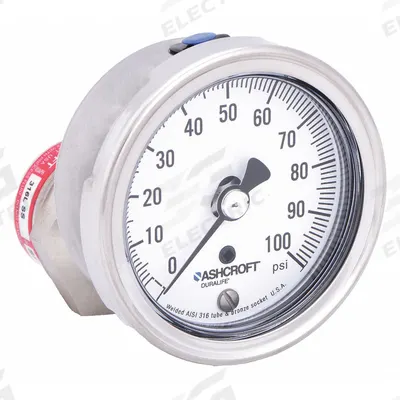

ASHCROFT Pressure Gauge with Diaphragm Seal: 0 psi to 100 psi, 1009/310-315, 2 1/2 in Dial
The ASHCROFT Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, offering a 0 psi to 100 psi range and ±1.50% accuracy. It features a 304 stainless steel gauge case, a…
SKU 3G-OTH-174906
Need installation or engineering help?
Ask a question
Product Description
The ASHCROFT Pressure Gauge with Diaphragm Seal is a dial pressure gauge with a 316 SS female-threaded mini-seal, offering a 0 psi to 100 psi range and ±1.50% accuracy. It features a 304 stainless steel gauge case, a 316L stainless steel seal lower housing, and a glycerin seal fill liquid with no gauge case liquid. This model (MPN 251009AW02B100#/25310SS02TXCG) has a 2 1/2 in dial and is designed for industrial pressure measurement applications.
Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
Frequently Asked Questions
What is the ASHCROFT pressure gauge with diaphragm seal used for?
This ASHCROFT dial pressure gauge with a 316 SS female-threaded mini-seal is used for industrial pressure measurement in applications requiring isolation of the gauge from corrosive or viscous process media. It is suitable for chemical, petrochemical, and general process industries where accurate 0 psi to 100 psi readings with ±1.50% accuracy are needed.
What are the specifications of the ASHCROFT pressure gauge with diaphragm seal?
The ASHCROFT model 251009AW02B100#/25310SS02TXCG has a 0 psi to 100 psi range, ±1.50% accuracy, a 2 1/2 in dial, and a 304 stainless steel gauge case. The seal lower housing is 316L stainless steel, the seal fill liquid is glycerin, and there is no gauge case liquid. It uses a 316 SS female-threaded mini-seal.
Where to buy the ASHCROFT pressure gauge with diaphragm seal worldwide?
You can source the ASHCROFT pressure gauge with diaphragm seal worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply this model (MPN 251009AW02B100#/25310SS02TXCG) to customers globally.
How to select the right ASHCROFT pressure gauge with diaphragm seal?
To select the correct ASHCROFT pressure gauge with diaphragm seal, verify the required pressure range (0 psi to 100 psi for this model), process connection type (316 SS female-threaded mini-seal), and compatibility with your media. Ensure the seal fill liquid (glycerin) suits your temperature and vibration conditions. Consult 3G Electric for application guidance.
