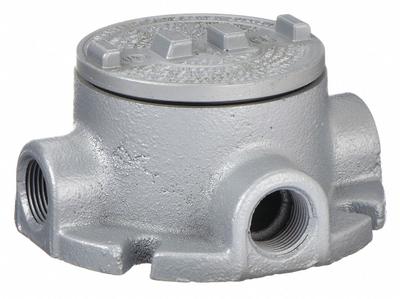

APPLETON ELECTRIC Conduit Outlet Body: Iron, GRF, 3/4 in Trade Size, X Body - X, XAT and XTF Round Body - Cross Type
APPLETON ELECTRICX, XAT and XTF Round Body - Cross Type

APPLETON ELECTRIC Conduit Outlet Body: Iron, GRF, 3/4 in Trade Size, X Body

The APPLETON ELECTRIC GRFX75 is a 3/4 in trade size, iron conduit outlet body in the X body style, designed for use with threaded IMC. This female-threaded, flat-back unit features a triple coat epoxy coating, a…

SKU 3G-OTH-05205

Brand
APPLETON ELECTRIC
Item
Conduit Outlet Body: Iron, GRF, 3/4 in Trade Size, X Body
Category
X, XAT and XTF Round Body - Cross Type
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
GRFX75
Series
For Standard Body
Type
GRF, X Body, 18 cu in Body Capacity
Material
Iron
Finish
Triple Coat Epoxy Coating
Back Type
Flat
Body Type
Conduit Outlet Body
Hub Style
Threaded
Standards
CSA C22.2 No. 30
Body Style
X
Trade Size
3/4 in
For Use With
Threaded IMC
Thread Gender
Female
Cover Included
Yes
Connection Type
Threaded
Special Features
Flanged
Hazardous Location
Yes
Compatible Conduit Trade Size
3/4 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC GRFX75 is a 3/4 in trade size, iron conduit outlet body in the X body style, designed for use with threaded IMC. This female-threaded, flat-back unit features a triple coat epoxy coating, a flanged design, and includes a cover. It is CSA C22.2 No. 30 certified for hazardous locations.

Used in

Common applications for APPLETON ELECTRIC
Oil and gas refineries — Appleton Electric EDSC21MC2 manual motor switch for controlling pumps in Class I, Division 1 areas
Chemical processing plants — Appleton Electric AEAB13420C hazardous location circuit breaker for motor protection in volatile environments
Pharmaceutical manufacturing — Appleton Electric FSK-1VDR weatherproof cover for duplex receptacles in washdown zones
Wastewater treatment facilities — Appleton Electric UNY250R-A aluminum conduit union for corrosion-resistant connections
Mining operations — Appleton Electric EDSC277-SA tandem 2-gang box for junction points in hazardous dust locations
Food and beverage processing — Appleton Electric JBK-75 iron cover for conduit access fittings in wet or dusty areas

APPLETON ELECTRIC Products

3G Electric supplies APPLETON ELECTRIC x, xat and xtf round body - cross type. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
