Smc 3G-OTH-189586 — Technical Specifications

Name: Smc 3G-OTH-189586 SMC Compact Cylinder: 4 in Bore Dia, 1 in Stroke Lg, Through Hole Mounting, Aluminum, 3/8 in NPT (MPN NCDQ8BZ400-100). Key specifications — attr946022: Through Hole; attr946024: Single Rod; attr946038: NCQ8; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

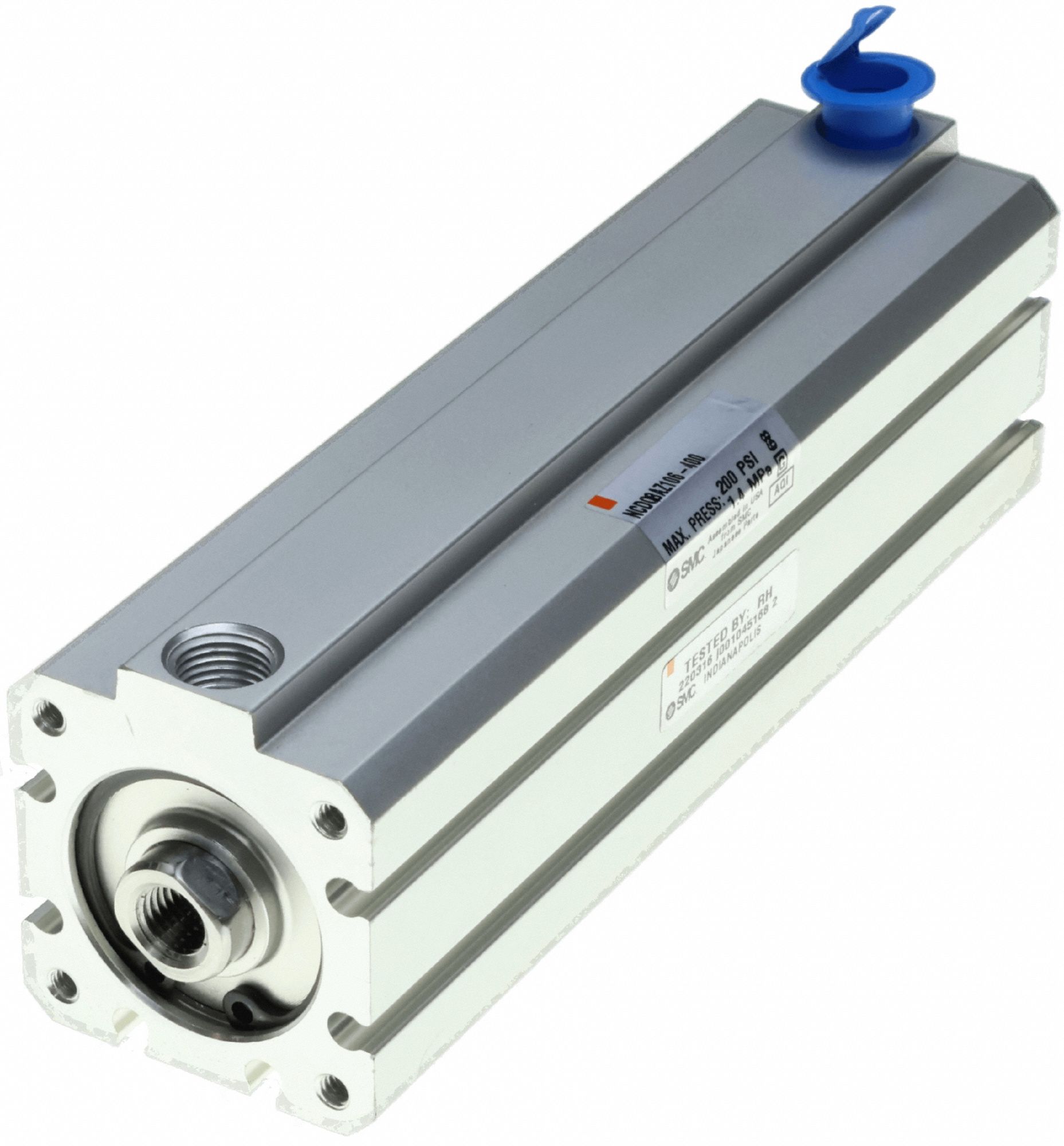

The SMC NCDQ8BZ400-100 is a compact cylinder from the NCQ8 series, featuring a 4-inch bore diameter and 1-inch stroke length. This through-hole mount, single-rod cylinder is constructed with aluminum and has a 3/8-inch NPT port size. It is designed with a rotating rod configuration for specific motion applications.

View Product & Quote

Technical Specifications

Parameter	Value
NPT	3/8 in
Type	Through Hole Mounting, Aluminum
Stroke Lg	1 in
Manufacturer Part Number	NCDQ8BZ400-100
