SMC Compact Cylinder: 4 in Bore Dia, 1 in Stroke Lg, Through Hole Mounting - Through Hole Mount Compact Cylinders
SMCThrough Hole Mount Compact Cylinders

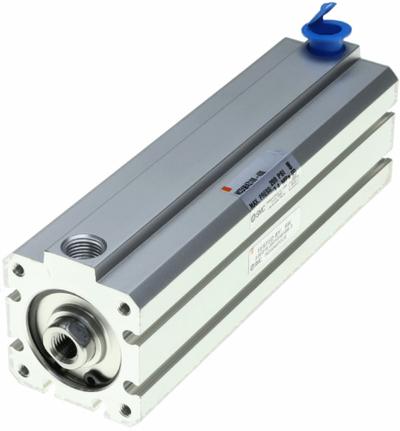

SMC Compact Cylinder: 4 in Bore Dia, 1 in Stroke Lg, Through Hole Mounting

The SMC NCDQ8BZ400-100 is a compact cylinder from the NCQ8 series, featuring a 4-inch bore diameter and 1-inch stroke length. This through-hole mount, single-rod cylinder is constructed with aluminum and has a…

SKU 3G-OTH-189586

Brand
SMC
Item
Compact Cylinder: 4 in Bore Dia, 1 in Stroke Lg, Through Hole Mounting
Category
Through Hole Mount Compact Cylinders
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
NCDQ8BZ400-100
Type
Through Hole Mounting, Aluminum
NPT
3/8 in
Stroke Lg
1 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC NCDQ8BZ400-100 is a compact cylinder from the NCQ8 series, featuring a 4-inch bore diameter and 1-inch stroke length. This through-hole mount, single-rod cylinder is constructed with aluminum and has a 3/8-inch NPT port size. It is designed with a rotating rod configuration for specific motion applications.
